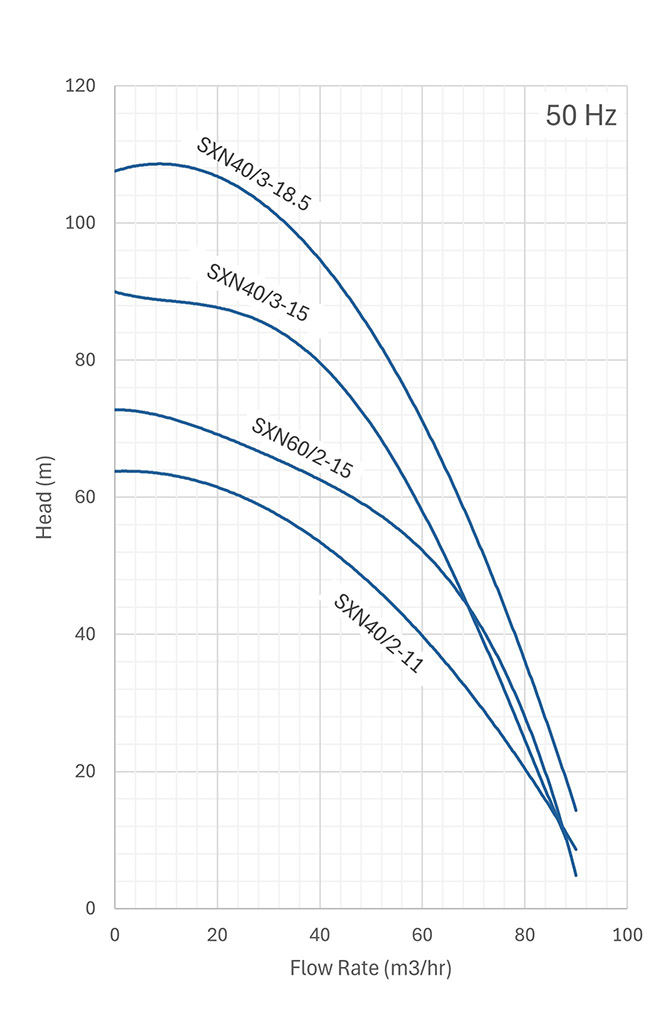

sapphire 600 50hz up to 18.5kw performance curves

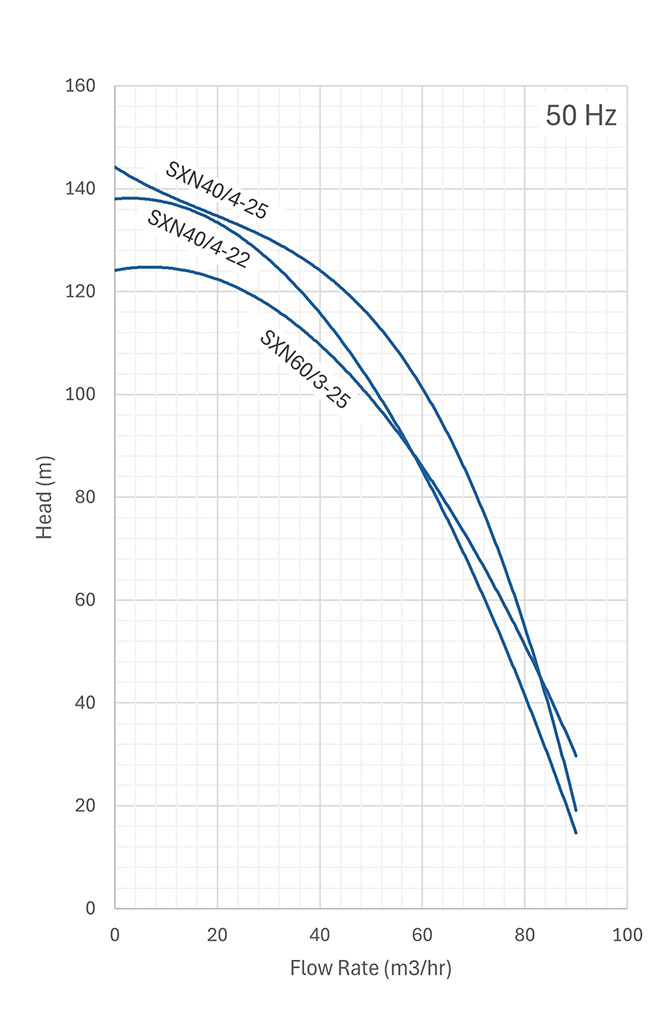

sapphire 600 50hz up to 25kw performance curves

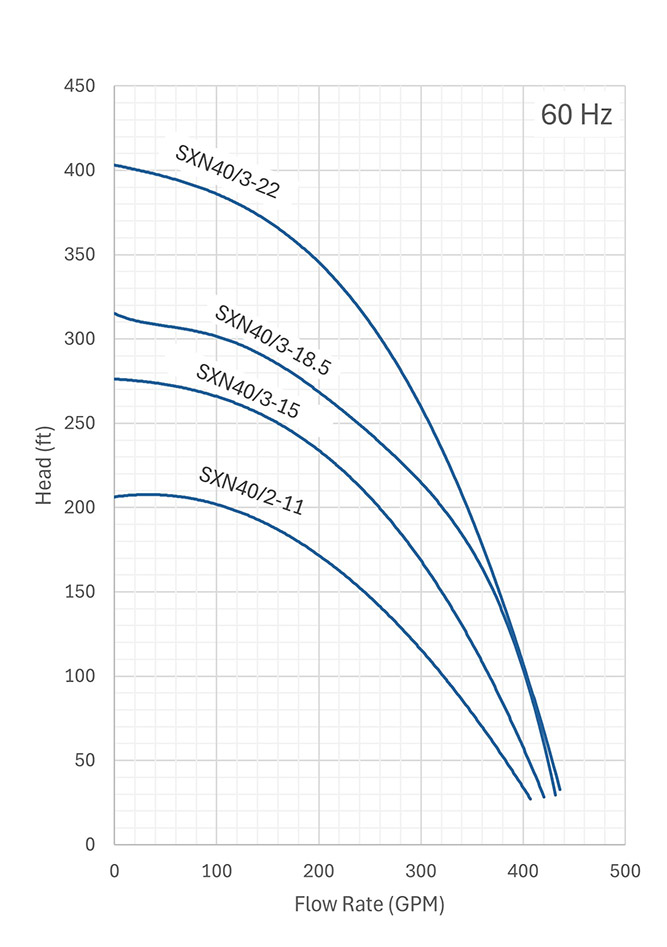

sapphire 600 60hz performance curves
Sapphire Filterpump™
sapphire 600 50hz up to 18.5kw performance curves
sapphire 600 50hz up to 25kw performance curves
sapphire 600 60hz performance curves

Sapphire 600 Filterpumps™

Rotorflush Sapphire Filterpumps™ are general purpose high pressure submersible filter pumps with a built-in self-cleaning suction intake screen. Pump and screen up to 90 m3/hr, 400 US GPM, and to a maximum head of 14 bar, 200 psi.

Key Features

  • High-head Multistage Filter Pumps
  • Maximum Head 140 m, 200 psi
  • Pumping and screening combined
  • Maximum Flow Rate - 90 m3/hr, 395 US GPM

Configure your product

Your price from:
Enquire Now

Sapphire 600 Filterpumps™

  • Specifications
  • Prices & ordering
  • Downloads
Enquire

Specifications & Dimensions

Select model
To view accurate specification and dimension details

Specification

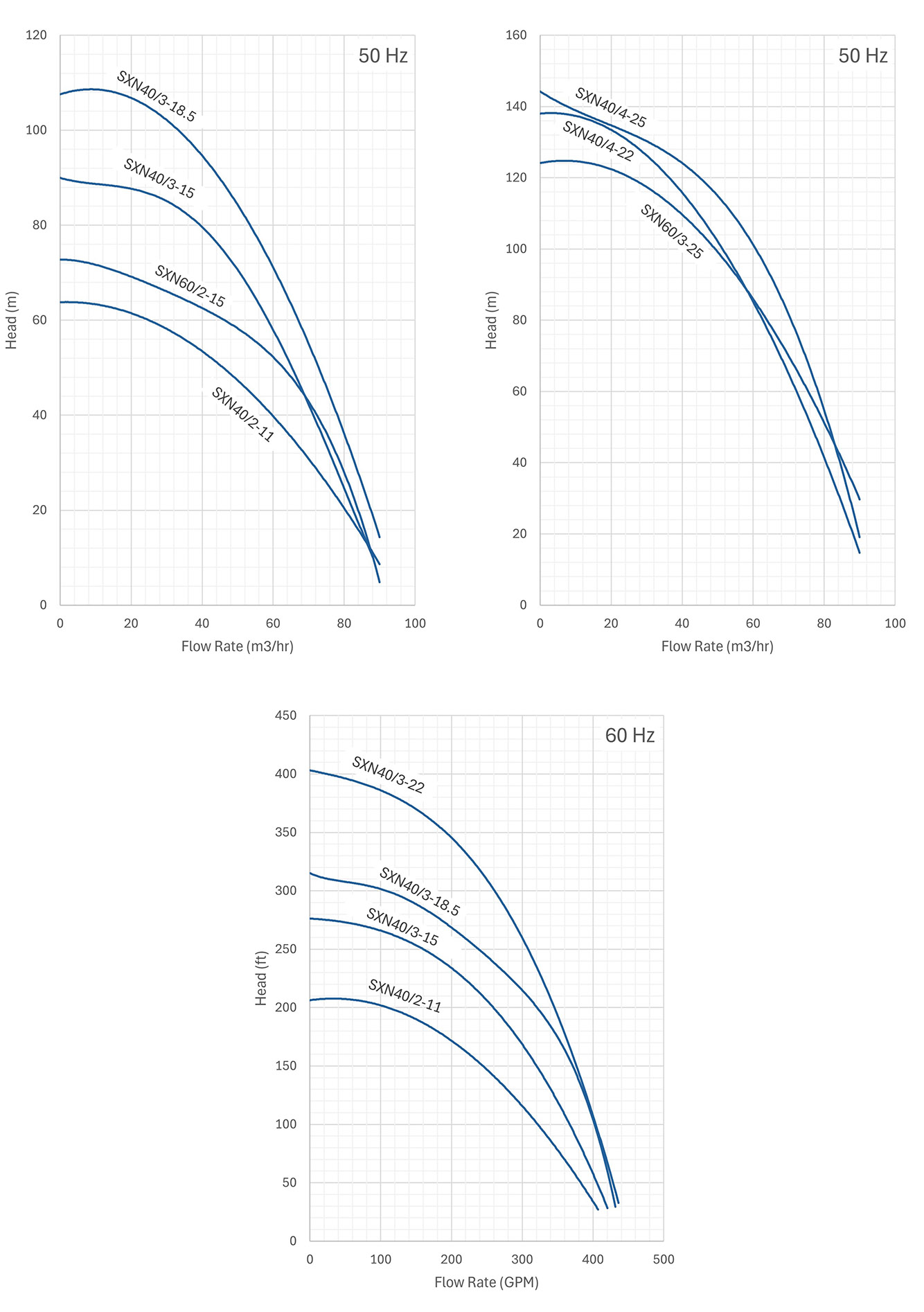

sapphire 600 performance curves
Voltage 50 Hz
400 V
Voltage 60 Hz
480 V
Power
11 kW
Rated Current 50 Hz
22 A
Rated Current 60 Hz
22 A
Outlet
80 mm
Max Flow Rate 50 Hz
90 m3/h
Max Flow Rate 60 Hz
405 US GPM
Max head 50 Hz
63 m
Max head 60 Hz
206 ft
Mesh Apertures Sintered Stainless
315 micron
Mesh Apertures Woven Stainless
1 mm, 2 mm or 3 mm
Voltage 50 Hz
400 V
Voltage 60 Hz
480 V
Power
11 kW
Rated Current 50 Hz
31 A
Rated Current 60 Hz
31 A
Outlet
80 mm
Max Flow Rate 50 Hz
90 m3/h
Max Flow Rate 60 Hz
418 US GPM
Max head 50 Hz
90 m
Max head 60 Hz
272 ft
Mesh Apertures Sintered Stainless
315 micron
Mesh Apertures Woven Stainless
1 mm, 2 mm or 3 mm
Voltage 50 Hz
400 V
Power
15 kW
Rated Current 50 Hz
31 A
Outlet
100 mm
Max Flow Rate 50 Hz
90 m3/h
Max head 50 Hz
73 m
Mesh Apertures Sintered Stainless
315 micron
Mesh Apertures Woven Stainless
1 mm, 2 mm or 3 mm
Voltage 50 Hz
400 V
Voltage 60 Hz
480 V
Power
18.5 kW
Rated Current 50 Hz
37.2 A
Rated Current 60 Hz
37.2 A
Outlet
80 mm
Max Flow Rate 50 Hz
90 m3/h
Max Flow Rate 60 Hz
431 US GPM
Max head 50 Hz
108 m
Max head 60 Hz
314 ft
Mesh Apertures Sintered Stainless
315 micron
Mesh Apertures Woven Stainless
1 mm, 2 mm or 3 mm
Voltage 50 Hz
400 V
Power
18.5 kW
Rated Current 50 Hz
37.2 A
Outlet
100 mm
Max Flow Rate 50 Hz
90 m3/h
Max head 50 Hz
81 m
Mesh Apertures Sintered Stainless
315 micron
Mesh Apertures Woven Stainless
1 mm, 2 mm or 3 mm
Voltage 50 Hz
400 V
Voltage 60 Hz
480 V
Power
22 kW
Rated Current 50 Hz
45 A
Rated Current 60 Hz
45 A
Outlet
80 mm
Max Flow Rate 50 Hz
90 m3/h
Max Flow Rate 60 Hz
440 US GPM
Max head 50 Hz
142 m
Max head 60 Hz
403 ft
Mesh Apertures Sintered Stainless
315 micron
Mesh Apertures Woven Stainless
1 mm, 2 mm or 3 mm
Voltage 50 Hz
400 V
Power
25 kW
Rated Current 50 Hz
51 A
Outlet
80 mm
Max Flow Rate 50 Hz
90 m3/h
Max head 50 Hz
122 m
Mesh Apertures Sintered Stainless
315 micron
Mesh Apertures Woven Stainless
1 mm, 2 mm or 3 mm
Voltage 50 Hz
400 V
Power
25 kW
Rated Current 50 Hz
51 A
Outlet
100 mm
Max Flow Rate 50 Hz
90 m3/h
Max head 50 Hz
123 m
Mesh Apertures Sintered Stainless
315 micron
Mesh Apertures Woven Stainless
1 mm, 2 mm or 3 mm

Dimensions

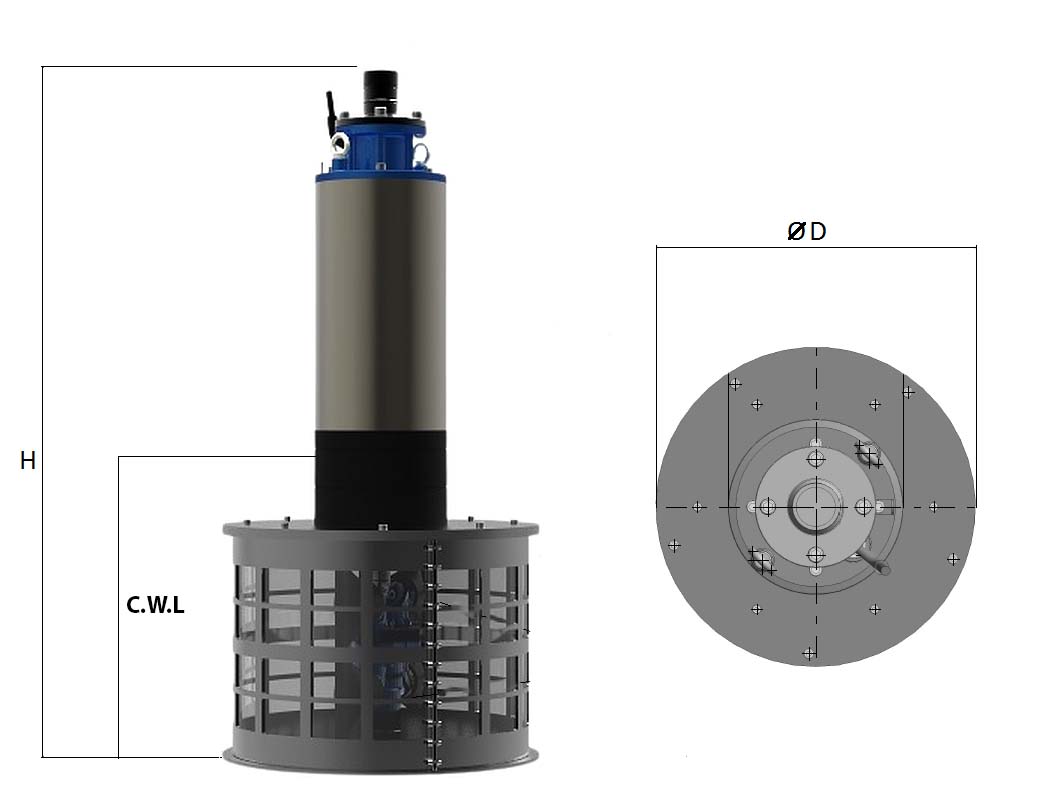

Sapphire Dimensions drawing
Height
1485 mm
Overall Diameter
655 mm
CWL Height
650 mm
Weight
255 kg
Height
1605 mm
Overall Diameter
655 mm
CWL Height
650 mm
Weight
285 kg
Height
1530 mm
Overall Diameter
655 mm
CWL Height
650 mm
Weight
270 kg
Height
1620 mm
Overall Diameter
655 mm
CWL Height
650 mm
Weight
305 kg
Height
1550 mm
Overall Diameter
655 mm
CWL Height
650 mm
Weight
285 kg
Height
1775 mm
Overall Diameter
655 mm
CWL Height
650 mm
Weight
320 kg
Height
1775 mm
Overall Diameter
655 mm
CWL Height
650 mm
Weight
360 kg
Height
1700 mm
Overall Diameter
655 mm
CWL Height
650 mm
Weight
340 kg

Prices & ordering

  • All Models
  • SXN40/2-11
  • SXN40/3-15
  • SXN60/2-15
  • SXN40/3-18.5
  • SXN60/2-18.5
  • SXN40/4-22
  • SXN40/4-25
  • SXN60/3-25
Model No. 50 Hz 60 Hz
SXN40/2-11
SXN40/3-15
SXN60/2-15
SXN40/3-18.5
SXN60/2-18.5
SXN40/4-22
SXN40/4-25
SXN60/3-25

General Information about Sapphire 600 Filterpumps™

Our Sapphire Filterpumps™ are high pressure multi-stage submersible filter pumps with a built-in self-cleaning suction intake. This allows high-pressure, low-maintenance pumping in difficult water conditions.  Durable and robust, these filter pumps are cast iron and stainless steel construction.

These filter pumps provide high head flow rates up to 90 m3/hr, 400 US GPM. The powerful three-phase motors have thermal overload protection, and the intake screens are available in a range of mesh sizes.

Typical uses for Sapphire Filterpumps™ are:

  • Wash water for wastewater trash screens
  • Wash water for raw water intake screens
  • Irrigation
  • District and other heat pump systems
  • Anywhere you need high pressure screened water.

316 Sintered Stainless Steel Mesh

Robust screen material that can be easily cleaned with a pressure washer. Ideal for heat pumps and other applications where small tolerances require finer screening.

Available in 315 micron aperture.

316 Stainless Steel Woven Mesh

A tough screen providing for low maintenance; filter pumps with coarse mesh come fitted with rubber backwash jets which are suitable for handling larger particulate and debris.

Available in 1 mm, 2 mm and 3 mm. 2 mm aperture mesh recommended for Fish and Eel protection

316 Stainless Perforated Mesh

Ultra-tough, low-maintenance perforated stainless steel screens.  Filter pumps with perforated mesh come fitted with rubber backwash jets, which are suitable for handling larger particulate and debris.

Perforated steel in 3 mm, 6 mm and 10 mm apertures.

These filter pumps are ideal for screening and pumping quarry run-off, industrial process water, raw water, sea water and general heavy industrial uses.

The filter pumps have a weight range from 255 kg - 340 kg, lifting gear is required to move them. These filter pumps can be suspended in tanks, sumps or ponds or from buoys, or raised and lowered on a guide-rail system.

For best performance, make sure that there is good clearance around the filter pump mesh so that back-washed debris can disperse, and that the filter pump is above any silt or sludge that may accumulate.

There is no such thing as an entirely maintenance free filter, but Sapphire Filterpumps™, in keeping with all Rotorflush filtration products, are designed for low maintenance hassle-free use. Easy to pressure wash stainless steel mesh and in-built thermal protection in the filter pumps ensures smooth running.

The stainless mesh should be cleaned with a pressure washer. There is a trade-off between mesh size and maintenance - how often depends on your mesh size and the quality of what you are filtering.

As a minimum we recommend the following:

  • 315 micron mesh should be cleaned every 5000 hours of use
  • Coarse mesh that is 1 mm or bigger should be inspected and cleaned every 6 - 12 months

As a condition of our guarantee, and to protect against dry-running, we recommend the use of a starter panel or control panel capable of cos phi load monitoring when running these filter pumps.

Full maintenance guidelines can be found in the instruction manual available from the download link above.

What is the difference between a Rotorflush Filterpump™ and a filter pump?

A filter pump is a pump with a filter on the intake; a Rotorflush Filterpump™  is our unique, award-winning submersible pump with a built-in self-cleaning filter on the pump intake that keeps the intake filter clear and protects the pump from blocking and clogging.

See more Rotorflush Filterpumps™
Submersible pumps with self-cleaning filters built-in

Why Rotorflush?

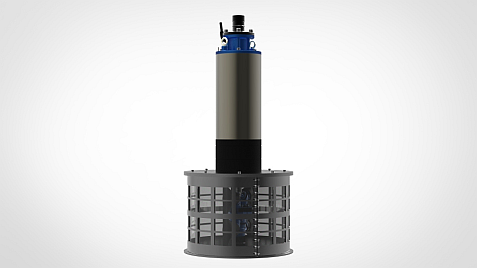

Sapphire 600 Filterpump

Designed & Manufactured in the UK

All our products are built to order and can be made to customer specifications.

  • Built to meet your required flow rate
  • Filter down to 50 microns
  • High quality filtration products hand built in the UK
High power Sapphire Filterpump™ completed and ready to ship

Rotorflush are Experts in Pumping and Screening Water

Our products and expertise have been appreciated by satisfied customers for over 2 decades.

  • Industry experts for over 20 years
  • 1000's of products successfully deployed worldwide
  •  Rotorflush products can screen from 2 - 1085 m3/hour
  • Keeping water flowing, and pumps, screens, spray bars and other equipment working
Sapphire Filterpumps™ working on the Great Lakes

Worldwide delivery and service

Through our worldwide distribution network, we offer the ability to:

  • Deliver filter pumps worldwide almost anywhere
  • Help service your filter pump
  • Repair a broken filter pump (whatever you've done to it…)

Contact us to find out more...

Call us now on 01297 560 229 | 8am - 5pm GMT,

or Email sales@rotorflush.com and a member of our expert, friendly team will call you back and will find the filter pump for your needs.

  • We work with you to identify your issues
  • We can design & build a custom solution
  • We can deliver our solution worldwide
Find the Sapphire Filterpump™ that meets your requirements..

OR Call us on: 01297 560229

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

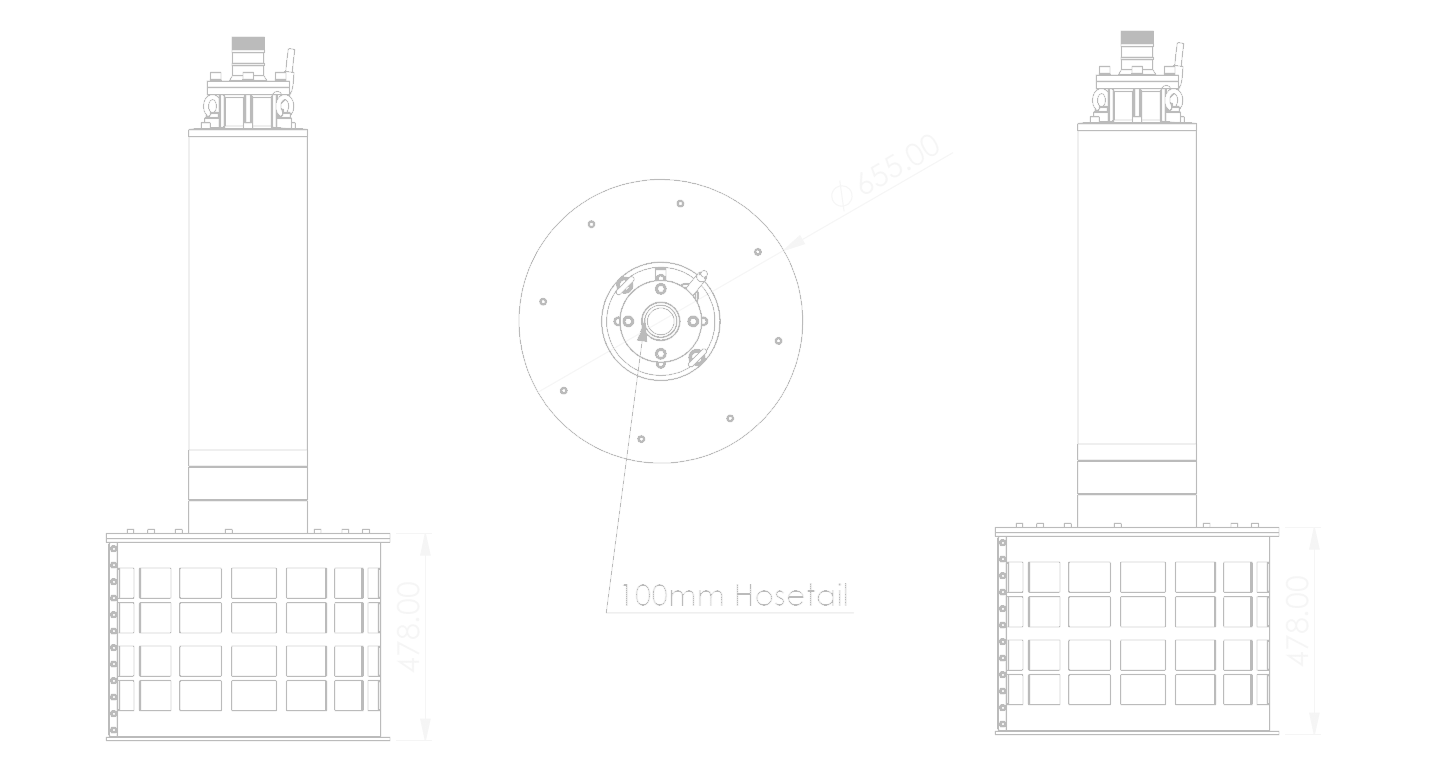

Background  Sapphire drawing
