RF100 Range Self-cleaning Filters. RF100 self-cleaning filters are designed to protect dry mounted pumps and other equipment from blocking while water is being pumped. They are pump suction hose filters available with 1, 2, or 3 filter heads, for a range of flow rates up to 90 litres a minute, 24 US GPM. They can be fitted with 60, 115 or 250 micron mesh, US Mesh 230, 120 and 60.
Price from: £300
RF1000AR Self-cleaning Filters and Strainers. 1000 mm diameter self-cleaning intake strainers for attachment to the suction hose of surface mounted pumps. These tough industrial all stainless-steel construction mechanical filters can deliver up to 1,045 m3/hour, 4,600 US GPM
Price from: £0
RF1000LW Self-cleaning Suction Intake Strainers and Eel Screens, 1000 mm in diameter, for use in raw and contaminated water. Industrial strength, low maintenance, all stainless steel self-cleaning basket strainers to prevent blocking and blinding during water abstraction. These intake screens handle up to 1,357 m3 / hour, 5,975 US GPM (when fitted with 2 mm mesh).
Price from: £0
RF1100AR Self-cleaning Filters and Strainers. RF1100AR self-cleaning intake strainers are for attachment to the suction hose of surface mounted pumps. These tough, 1100 mm diameter, industrial, all stainless-steel construction, mechanical filters can deliver up to 1,265 m3/hour, 5,570 US GPM
Price from: £0
RF1100LW Self-cleaning Strainers and Eel Screens. Our largest standard RF1100LW industrial, stainless steel, self-cleaning strainers (larger bespoke sizes can be made to order). These low maintenance suction side intake screens will handle up to 1642 m3/hour, 7230 US GPM when fitted with 2 mm aperture mesh.
Price from: £0
RF200 Self-cleaning Filters. RF200 self-cleaning filters provide effective screening for surface mounted pump intakes. The RF200 pump suction hose filters can screen from 50 microns - 6 mm, handling up to 220 litres a minute, 58 US GPM. A continuous backwash keeps the intake screen clear.
Price from: £1,700
RF300 self-cleaning filters. RF300 self-cleaning filters provide effective screening for surface mounted pump intakes. The RF200 pump suction hose filters can screen from 50 microns - 6 mm, handling up to 560 litres a minute, 148 US GPM. A continuous backwash keeps the intake screen clear.
Price from: £2,760
RF400 Self-cleaning Filters. Our extremely tough, stainless steel RF400 self-cleaning basket filters are for use on the pump suction hose of surface mounted pumps. The RF400 can filter up to 1000 litres per minute, 265 US GPM, from 50 microns to 6 mm.
Price from: £4,070
RF600AR Self-cleaning Strainer. Our RF600 self-cleaning intake strainers are for attachment to the suction hose of surface mounted pumps. These all stainless-steel construction mechanical filters can deliver up to 376 m3/hour, 1660 US GPM
Price from: £8,730
How Rotorflush Self-cleaning Water Filters Work
Small RF100 Rotorflush self-cleaning filter on a pump suction intake fitted with 60 micron filter mesh. Shows the filter working and keeping the intake screen clear.
Testing a Backwash Filter
Testing the backwash on a Rotorflush 600 mm diameter self-cleaning filter before we got the bigger workshop and test tank.
Rotorflush Self-Cleaning Suction Intake Filters & Strainers are for use with surface mounted pumps. They are a welcome alternative to the traditional pump suction hose basket strainer. All our filters are self-cleaning automatic backwash filters – the self-cleaning mechanism prevents the filter blinding or the pump blocking.
Rotorflush filters fit to the pump suction hose of surface mounted pumps. They use the power of the water being pumped to continuously clean and clear the filter mesh. They provide an uninterrupted supply of filtered output, protecting your equipment from blockage.
Our self-cleaning suction intake filters & strainers have capacities from 14 to 1000 cubic metres per hour. Screen apertures range from 60 microns to 10 mm depending on models. They are used successfully and reliably within the water treatment industry and oil and gas sector and for eel screening in raw water abstraction.
Our pump suction hose filters and screens deliver low maintenance efficient filtration in very difficult conditions.

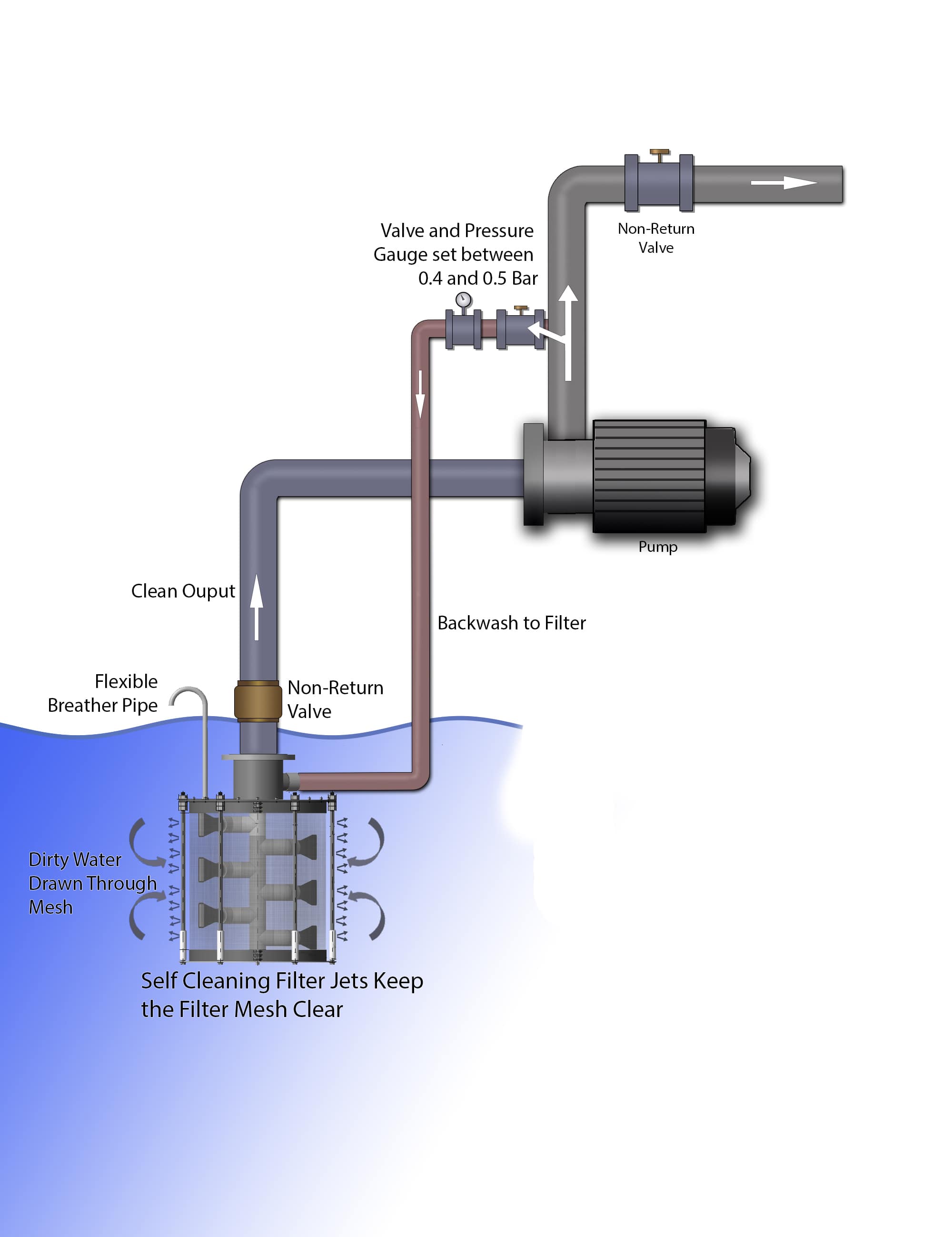

All our filters have an internal cleaning rotor that is powered by the pump output. By taking a ‘T’ off the output of the pump a small flow of water is directed back to the filter. This flow drives the Rotorflush internal self-cleaning rotors.
The rotors continuously backwash the mesh screen removing anything that might cause it to block.
We also make self-cleaning suction intake filters & strainers with a built-in pump motor that drives the backwash independently of the pump output. This means that the backwash can be continuous and at a constant pressure and flow whether the main pump drawing water through the filter is demanding a high or low flow rate.
This is particularly useful if your surface pump has a variable speed motor, as variations in pump output will not affect the self-cleaning mechanism of your filter.
Rotorflush filters are a robust long-lasting alternative to the traditional basket strainer. All but the smallest filters are made from stainless steel – marine grade steel can be provided if required – and they last for years.
Rotorflush filters are gently self-cleaning low intake velocity strainers and make ideal eel screens for water abstraction. Our self-cleaning filters are Eel friendly – our products can help with your compliance with the European Commission’s Eel Recovery Plan (Council Regulation No.1100/2007) and The Eel Regulations which now apply in England and Wales.
Rotorflush Filters Ltd have designed and developed a high open area suction intake to comply with current regulations for the protection of eels.
Increasingly abstraction licences are contingent on the installation of screens and equipment to protect elvers and glass eels. These measures can be expensive and may even entail civil works to ensure the terms of the abstraction licence. Our intention was to design a suction intake filter that minimised both the approach velocity of water to a screen, and to maximise the open area of our screens to reduce the size of filters required for a given flow rate.
In addition, we believe that our cylindrical filters require less installation than other fixed structures in rivers and lakes, and that their inbuilt self-cleaning mechanism offers lower maintenance and better protection for eels.
Our Eel screens are built using tensioned 2mm woven 316 stainless steel filter mesh. This offers an exceptional open area of around 66%, which enables us to keep the overall area of the filter to a minimum. Flow rates up to 1000 m³ / hr.
A self cleaning filter is a robust long-lasting alternative to the traditional basket strainer. A Rotorflush self-cleaning intake filter or strainer connects to the suction pipe of a surface mounted water pump - all but the smallest filters are made from stainless steel. All our filters and strainers are self-cleaning automatic backwash filters, with in-built cleaning rotors that continuously backwash their mesh screen to prevent blocking and blinding.
Traditional basket strainers get blocked easily if the water being pumped contains any debris, weed, leaves or other particulate. The Rotorflush self-cleaning mechanism, however, uses the power of the water being pumped to continuously clean and clear the filter mesh. This means that the basket strainer can pump for much longer without being cleaned while protecting your pump and any further connected equipment from blocking.
Time and money can be saved because our strainers and filters deliver low maintenance and efficient screening in difficult water conditions.
More information can be found here
Case Study
“One of the most significant investments we've made”
C J Hiscock, Sales
Rotorflush Filters LtdHow a Rotorflush Filter Saved a Market Garden Time and Money
Read the case studyTalk to our friendly team of engineers to discuss your design requirements.
