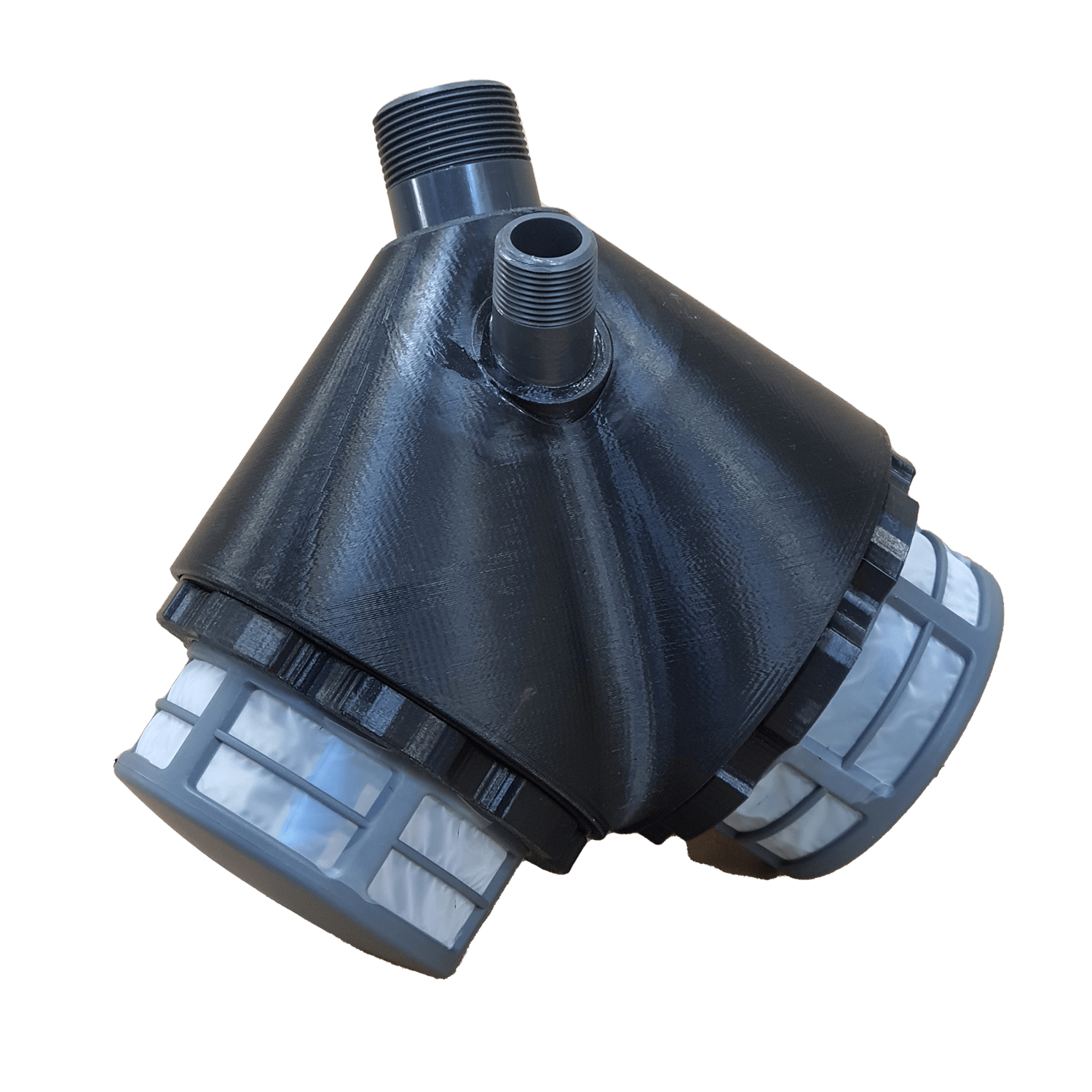

RF100Duplex self-cleaning filter

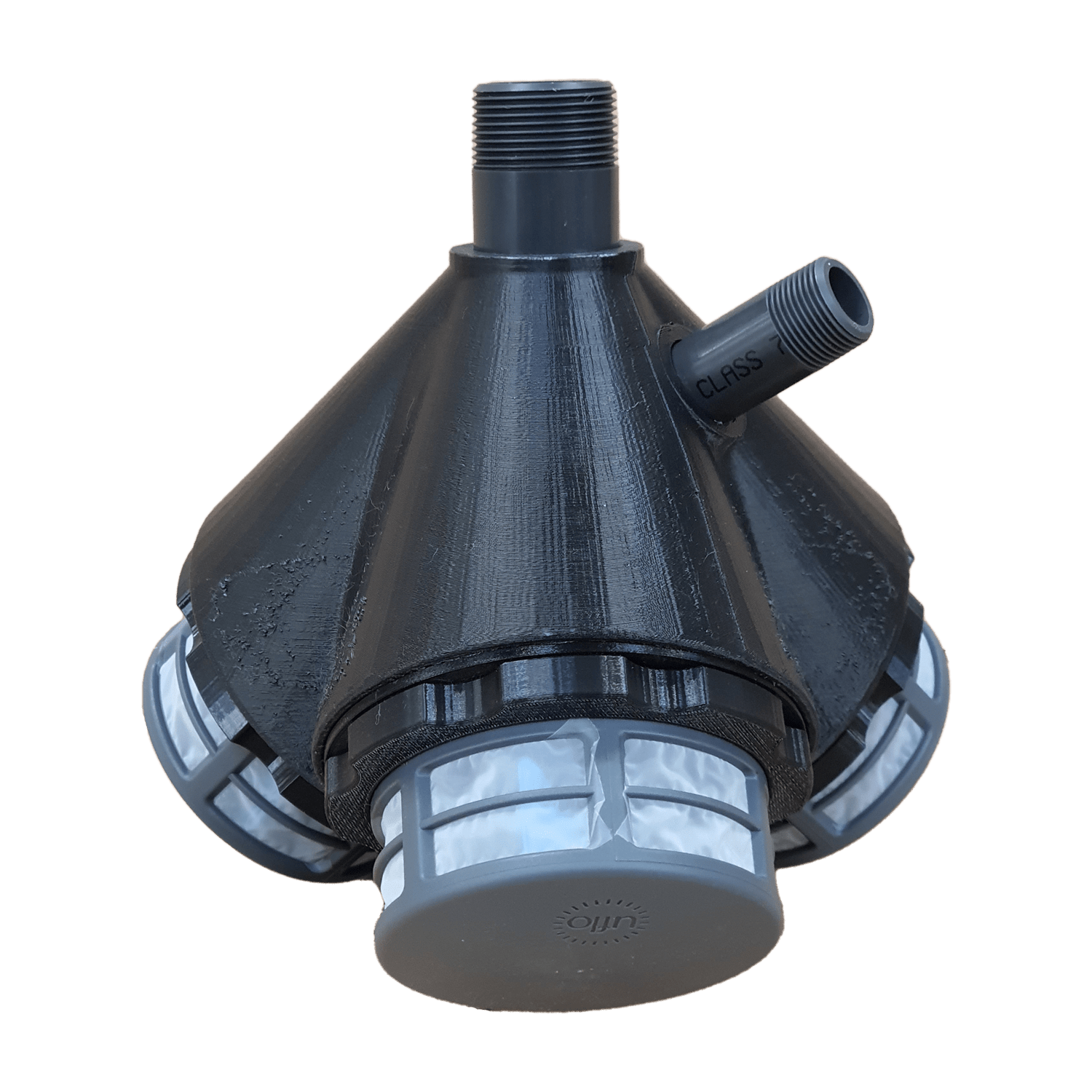

RF100Triplex self-cleaning filter

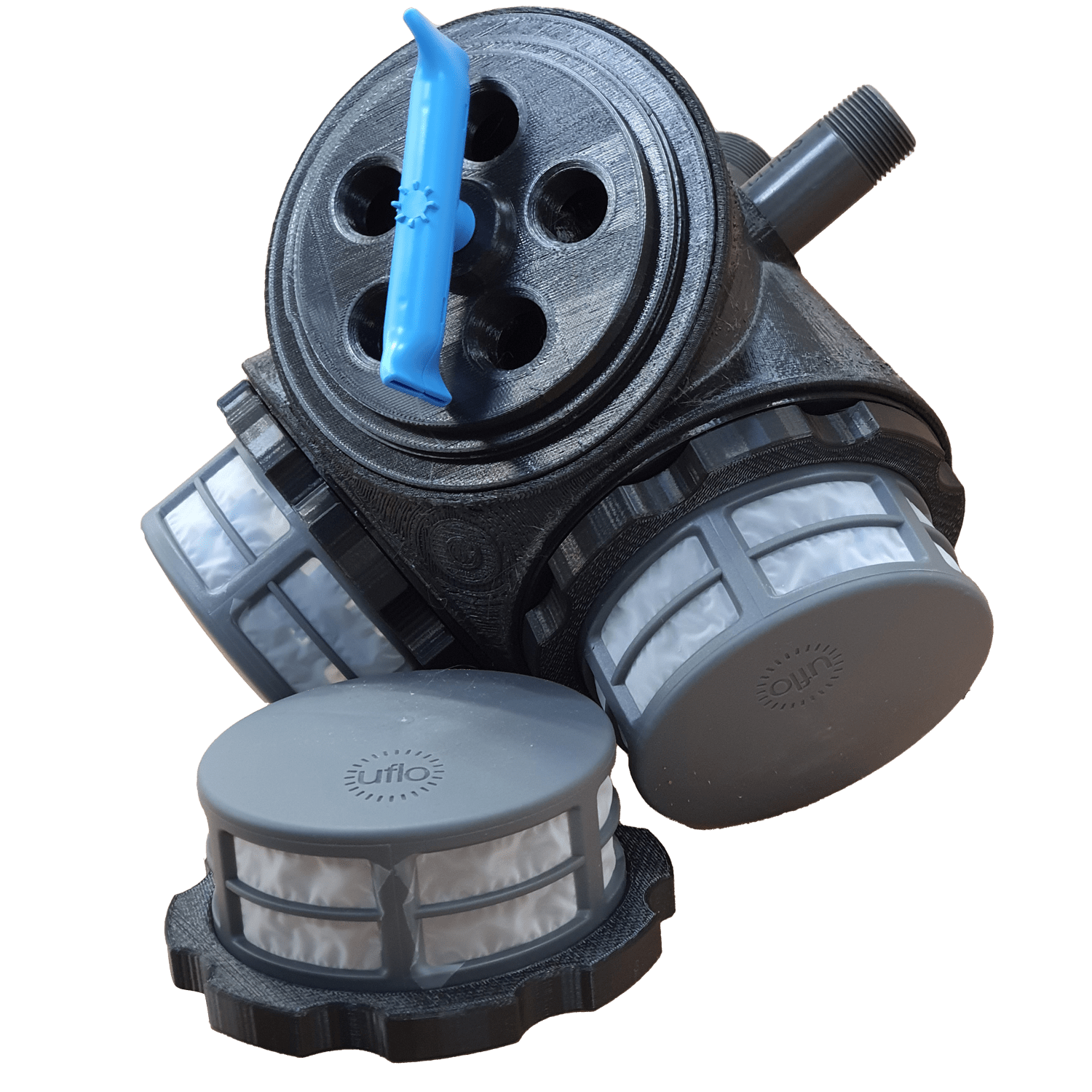

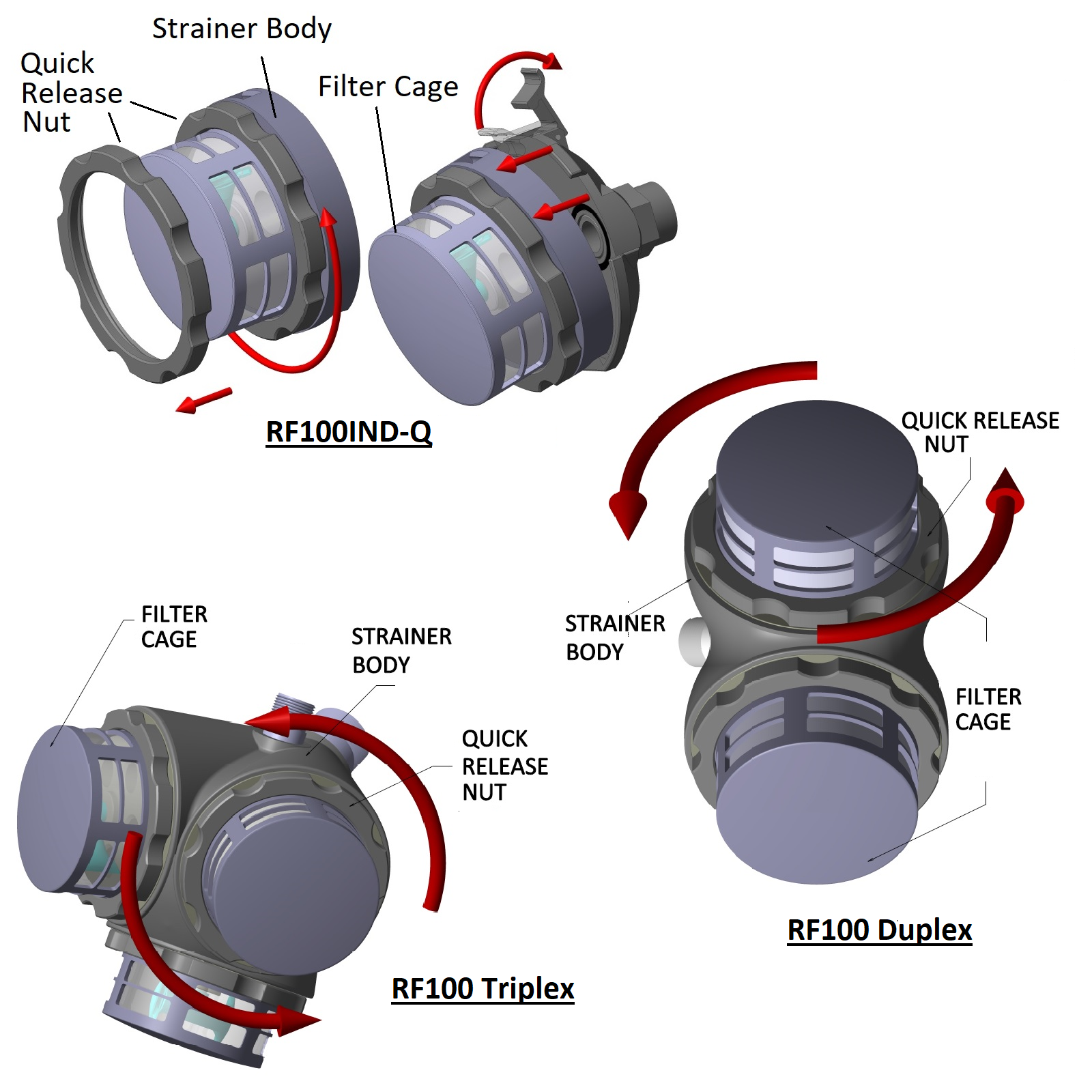

A dissasembled RF100triplex self-cleaning filter

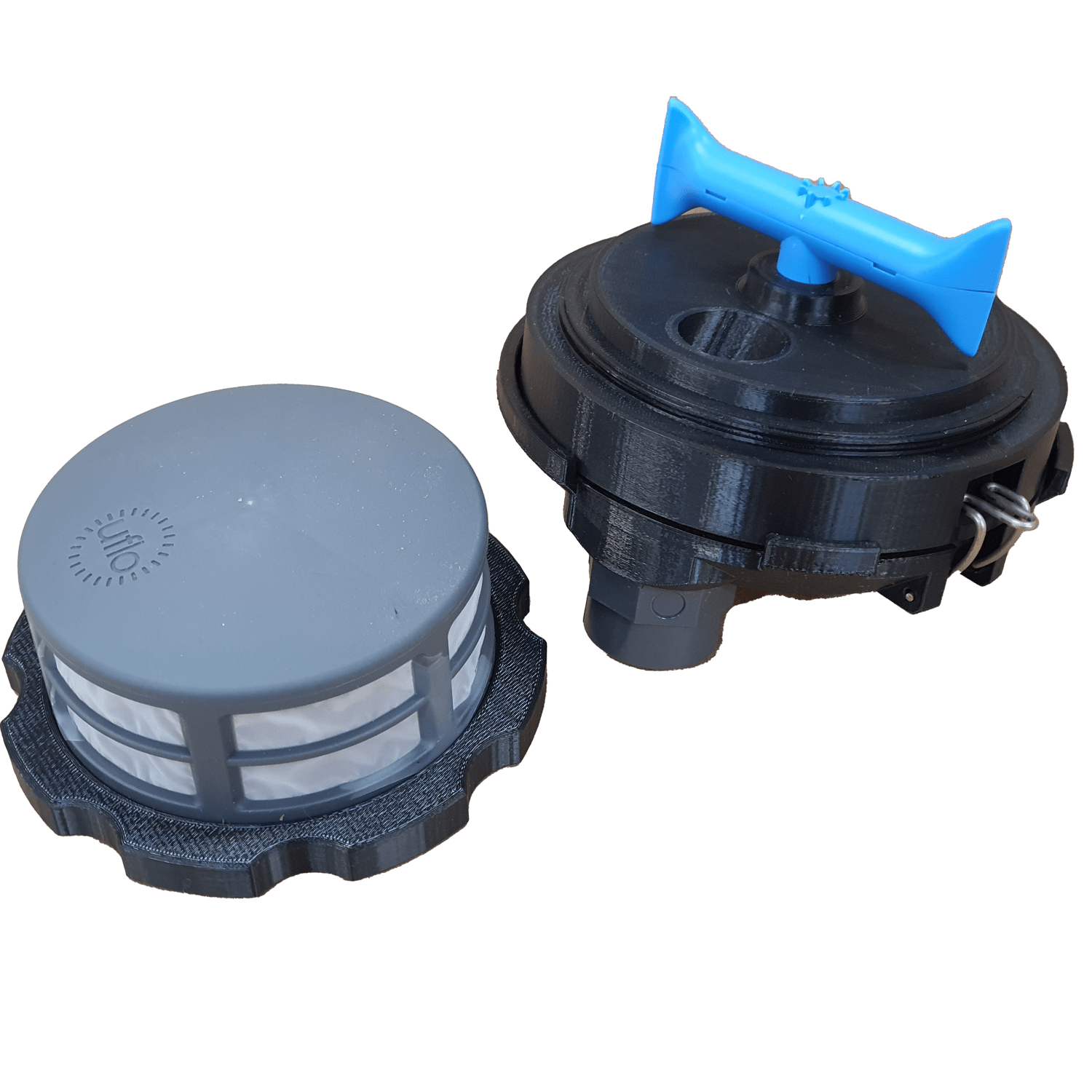

A dissassembled RF100IND-Q Self-cleaning filter

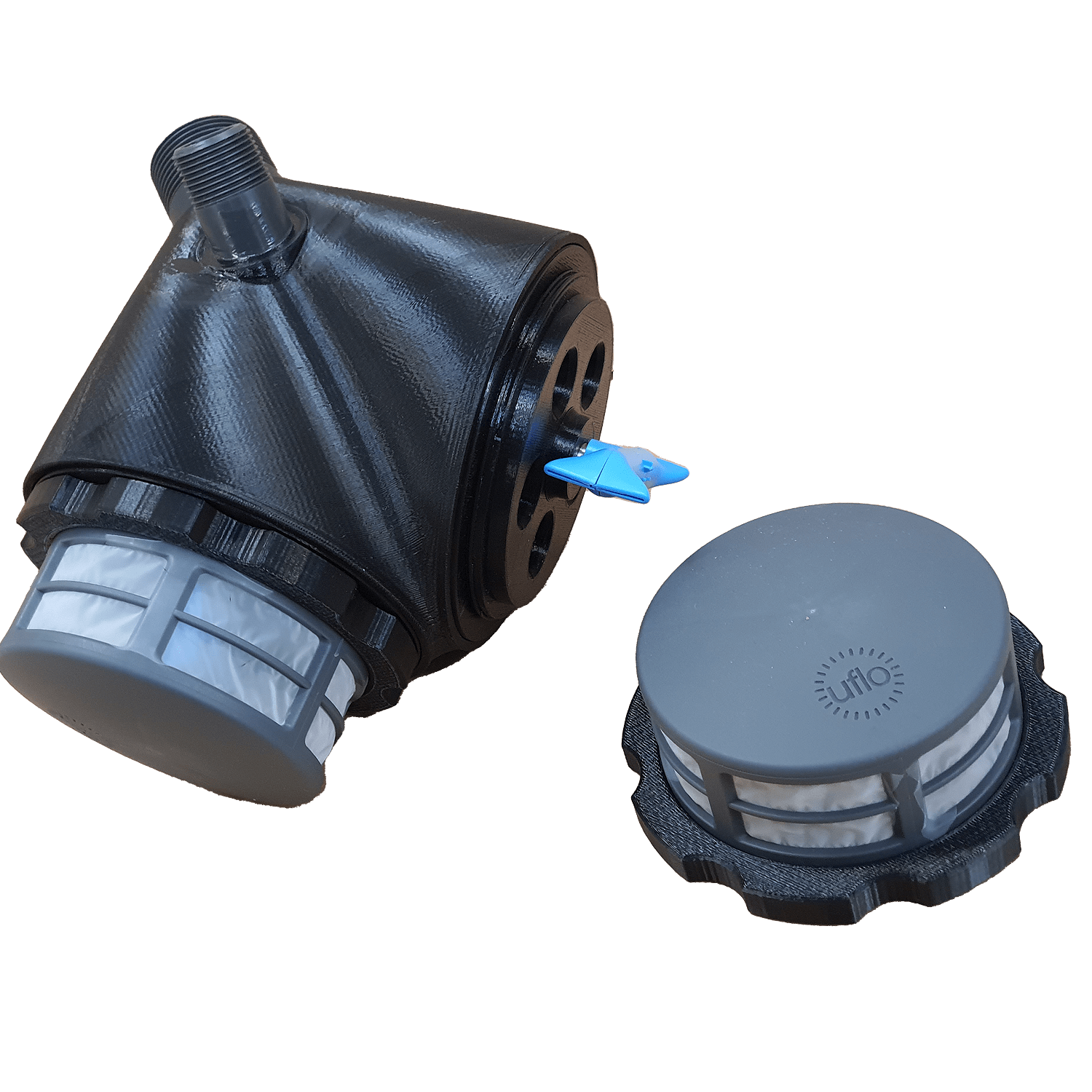

A dissasembled RF100Duplex self-cleaning filter
RF100IND-Q Self-cleaning filter
RF100Duplex self-cleaning filter
RF100Triplex self-cleaning filter
A dissasembled RF100triplex self-cleaning filter
A dissassembled RF100IND-Q Self-cleaning filter
A dissasembled RF100Duplex self-cleaning filter

RF100 Self-cleaning Filters

RF100 Range Self-cleaning Filters. RF100 self-cleaning filters are designed to protect dry mounted pumps and other equipment from blocking while water is being pumped. They are pump suction hose filters available with 1, 2, or 3 filter heads, for a range of flow rates up to 90 litres a minute, 24 US GPM. They can be fitted with 60, 115 or 250 micron mesh, US Mesh 230, 120 and 60.

Key Features

  • Compact and Robust Construction
  • Filters Up to 90 L/Min Down to 60 Microns
  • Keeps Pumps, Fountains, Nozzles etc. From Blocking
  • Protects Newts, Tadpoles and Other Pond Life

Configure your product

Your price from: N/A
Enquire Now

RF100 Self-cleaning Filters

  • Specifications
  • Prices & ordering
  • Downloads
Enquire

Specifications & Dimensions

Select model
To view accurate specification and dimension details

Specification

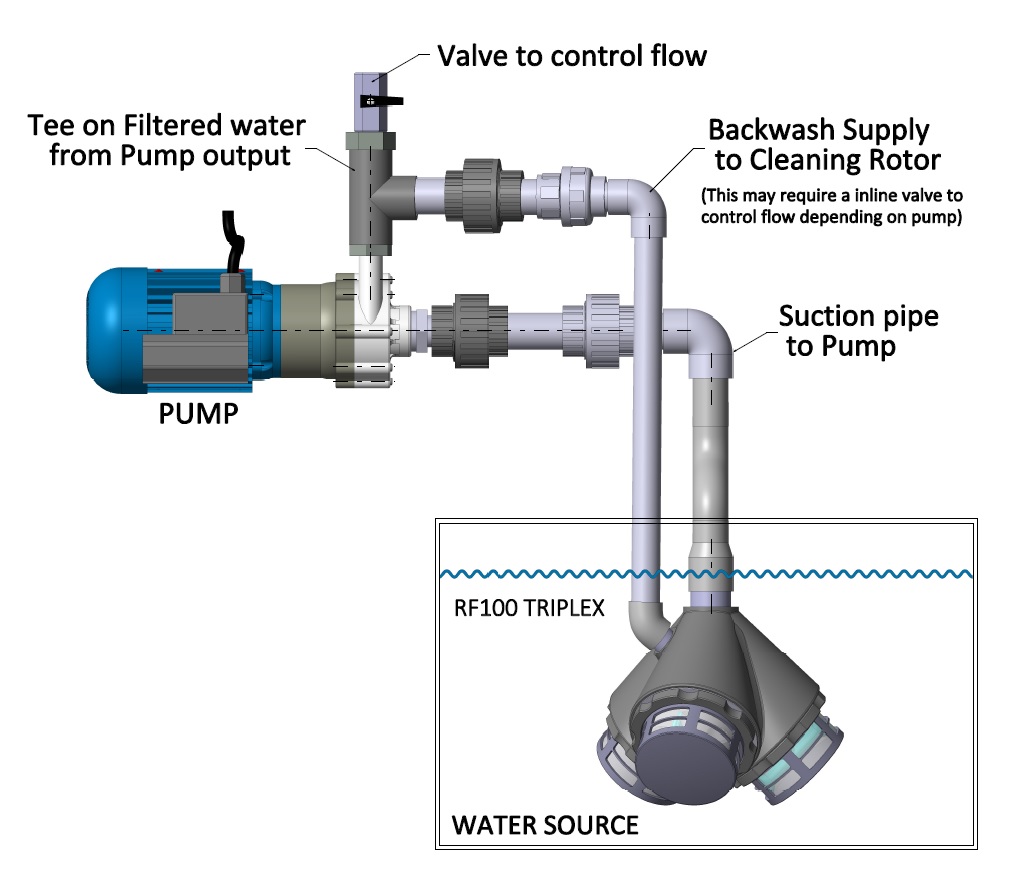

set up diagram for a RF100 Triplex filter
Flow Rate max
30 L/min
Outlet
0.75" BSP
Backwash Connection
0.5" BSP
Backwash
6 l/min (approx.)
Mesh Apertures Available
60, 115 or 250 micron Nylon

Dimensions

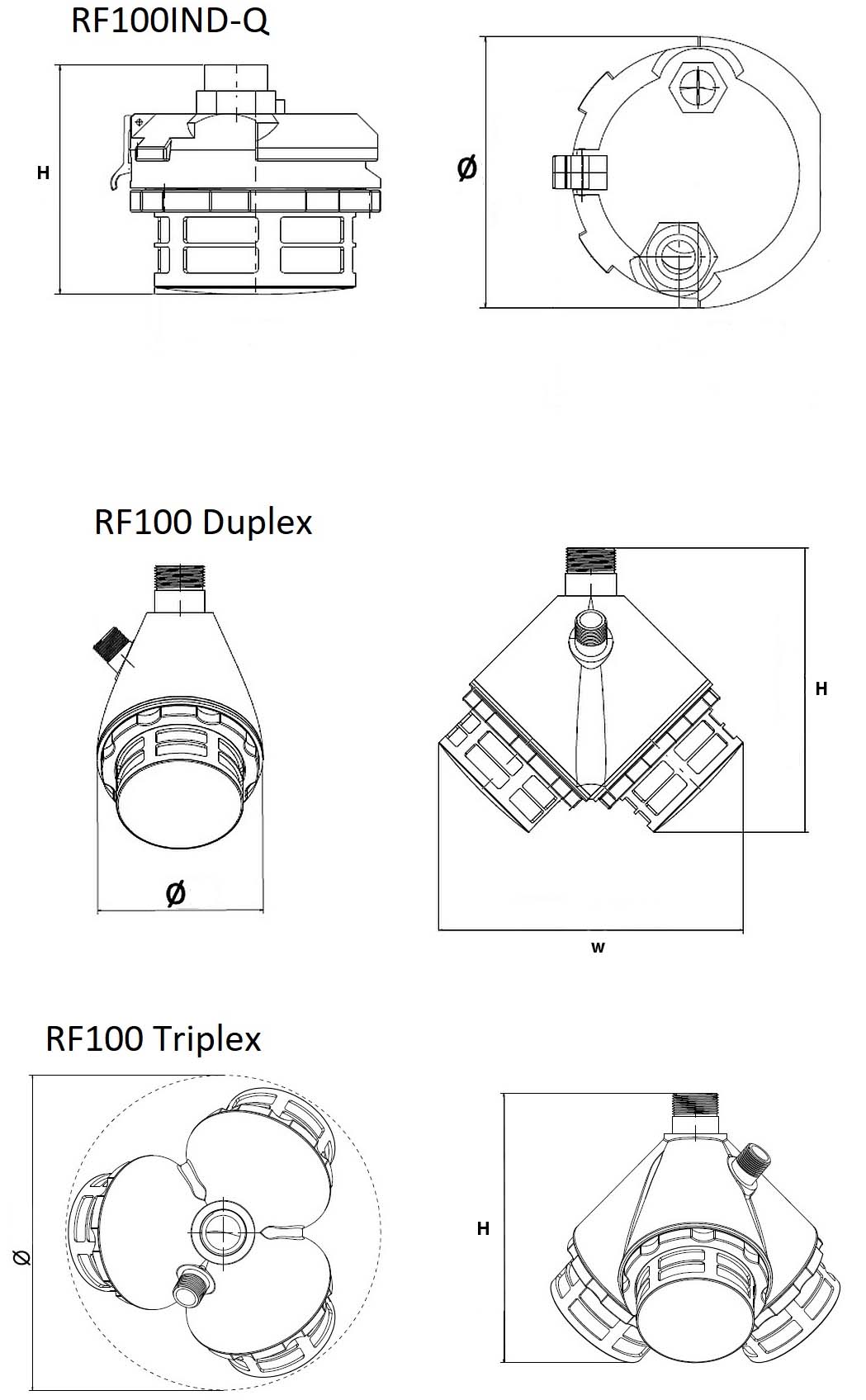

RF100 range Dimensions
Height
122 mm
Diameter
145 mm

General Information About the RF100 Self-cleaning Filters

Why Rotorflush?

3d printing rotorflush parts

Designed & Manufactured in the UK

All our products are made to order, and many can be made to customer specifications.

  • Built to meet your requirements
  • Screen dirty water down to 60 microns
  • Made to order in the UK
Newts (and weed etc) not being sucked into a pump thanks to RF100 Triplex filter.

Experts in Water Screening and Filtration

Our products and expertise have been appreciated by satisfied customers for over 2 decades.

  • Industry experts for over 20 years
  • 1000's of products in use worldwide
  • Successfully screening 10 - 7,225 US GPM / 2 - 1,640 m3 hr
  • Our products keep water flowing by protecting pumps, screens, spray bars…….
  • .…nozzles, heat exchangers and other connected equipment from blocking
Self-cleaning pond filter

Worldwide Delivery and Service

Through our worldwide distribution network, we offer the ability to:

  • Deliver filters and strainers worldwide
  • Help service your filter or strainer
  • Repair a broken filter or strainer (whatever you've done to it…)

Talk to Our Experienced Staff

Call us now on 01297 560 229 | 8am - 5pm GMT,

or Email sales@rotorflush.com and a member of our expert, friendly team will call you back and find the filter or strainer for your needs.

  • We work with you to identify your issues
  • We can design & build a custom solution
  • We can deliver our solution worldwide
We’ll Help You Find the Right RF100 for You
We’ll Help You Find the Right RF100 for You

OR Call us on: 01297 560229

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

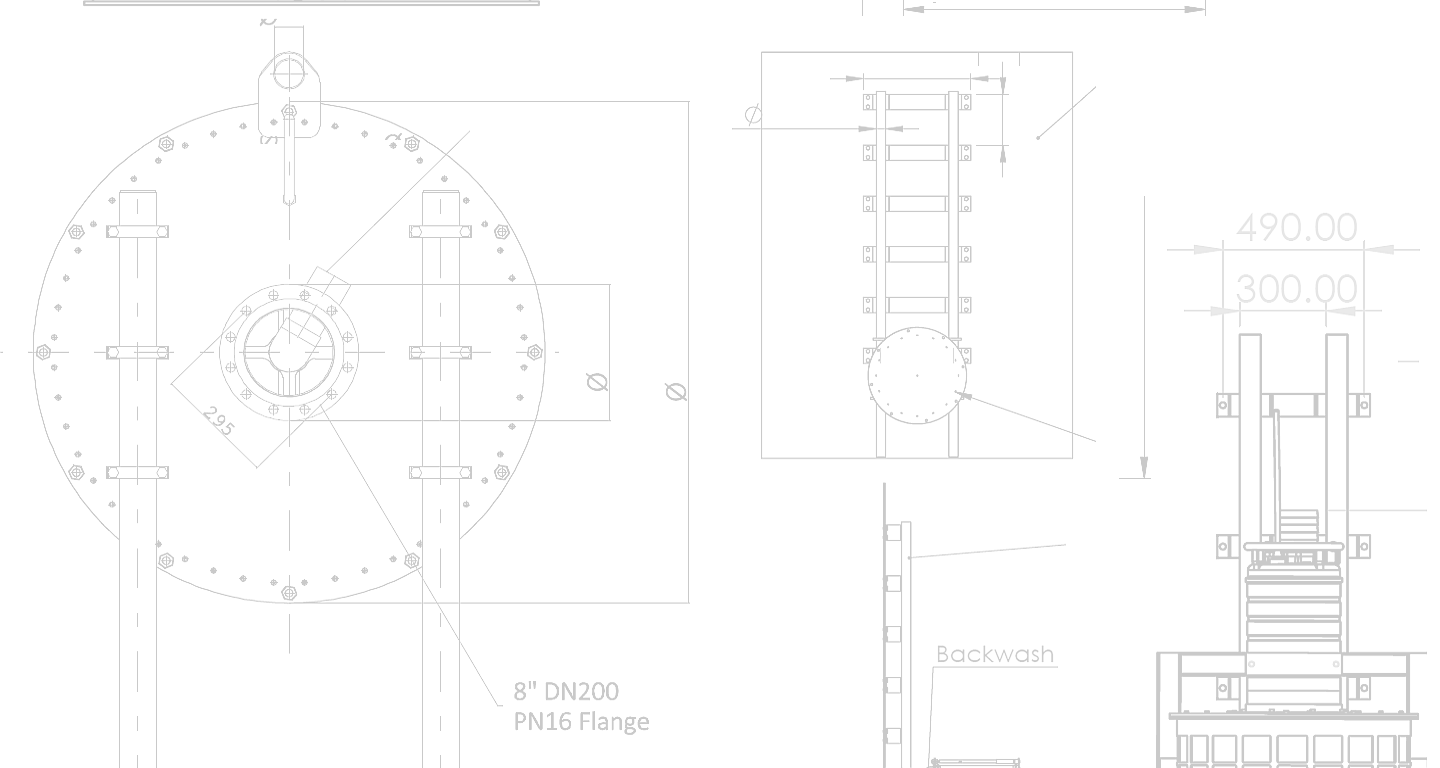

cad drawing of a filter on a guide rail
