Filterpumps™ for Sampling

Self-cleaning filter pump. The O1608-16 sample pump is a low head submersible filter pump with an integral self-cleaning filter for use with on-line analysers and dosing systems. It delivers a filtered output of water which prevents blockage to nozzles, valves and solenoids. Sample water can be screened to 60 microns and pumped simultaneously.

Key Features

  • Removes suspended solids down to 50 microns
  • 304 Stainless Steel construction
  • up to 220 litres per minute maximum flow
  • 11 metre maximum head
  • EA Eel Regulation and EPA Rule 316(b) compliant

Configure your product

Your price from:
Enquire Now

Filterpumps™ for Sampling

  • Specifications
  • Prices & ordering
  • Downloads
Enquire

Specifications & Dimensions

Select model
To view accurate specification and dimension details

Specification

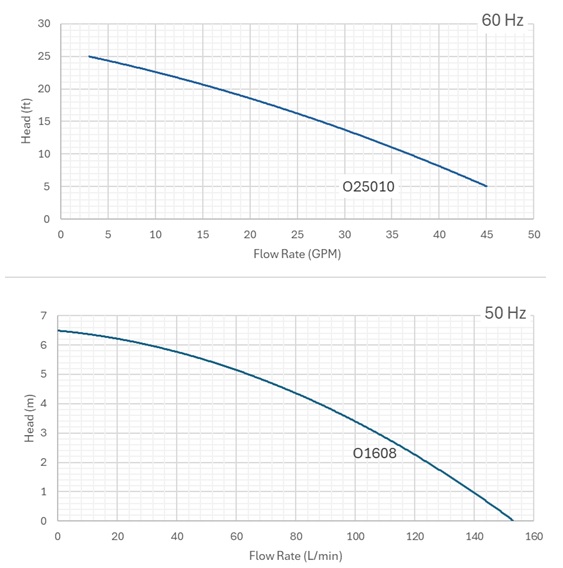

sample pump curves
Voltage
230 V, 50Hz Single Phase
Power
0.4 kW
Amps
2.4 A
Outlet
1.25 "
Flow Rate Max
150 L/min
Head Max
7 m
Cable Length
10 m
Mesh Apertures Sintered Stainless
50, 100 or 315 micron
Mesh Apertures Woven Stainless
1 mm, 2 mm or 3 mm
Voltage
115 V, 60 Hz Single Phase
Power
0.55 kW
Amps
8 A
Outlet
1.25 "
Flow Rate Max
225 L/min
Head Max
11 m
Cable Length
10 m
Mesh Apertures Sintered Stainless
50, 100 or 315 micron
Mesh Apertures Woven Stainless
1 mm, 2 mm or 3 mm
Voltage
230 V, 60 Hz Single Phase
Power
0.48 kW
Amps
3 A
Outlet
2 "
Flow Rate Max
60 US GPM
Head Max
26 ft
Mesh Apertures Sintered Stainless
50, 100 or 315 micron
Mesh Apertures Woven Stainless
1 mm, 2 mm or 3 mm

Dimensions

Omnia Dimensional Drawing
Height
453 mm
Overall Diameter
220 mm
Weight
9.5 kg
Height
491 mm
Overall Diameter
220 mm
Weight
10 kg
Height
70 mm
Overall Diameter
220 mm
Weight
15.4 kg

Prices & ordering

  • All Models
  • O1608
  • O25010 60 Hz
  • Flint 480
Model No. Nylon Stainless
O1608
O25010 60 Hz
Flint 480

General Information Filter Pumps for Sampling

Our smaller filter pumps, Omnia, Flint and Idrogo Filterpumps™, are used widely in the water industry and beyond for raw and dirty water sampling for analysis. These are submersible centrifugal pumps with integral self-cleaning suction intakes that can screen and pump water simultaneously.

These pumps are preferred for raising sample water because they can screen down to 60 microns without blocking. Because water is filtered as it is pumped from source, analytical equipment is protected against clogging and blocking by any debris or particulate that may be in the sample water.

Here are some of the uses we have our sample pumps for:

  • screening and supplying sample veg and salad washing water for dosing systems
  • Protecting sampling equipment at raw water intakes
  • Screening and supplying final effluent for analysis at waste water treatment works
  • Ensuring low-maintenance continuous monitoring at remote and unmanned sample sites
Omnia Filterpump™ with float switch Stainless Steel mesh and stand

Rotorflush Omnia sample filter pump fitted with sintered stainless steel intake screen, built in float switch and small stand.

Sample filter pumps can be fitted with:

Nylon Mesh inserts

The filter mesh is made up of replaceable bias-cut nylon mesh offering a very clean filtration, ideal for sampling. The inserts are inexpensive and easy to replace.

Available in 60 micron, 115 micron or 300 micron.

316 Stainless Steel Sintered Mesh

A robust screen that can be easily cleaned with a pressure washer. Ideal for heat pumps and other application with small tolerances.

Available in 50 micron, 100 micron and 315 micron.

Due to their small size and portability, our sample pumps are very versatile and can be installed in a number of ways.

The key thing to remember is to make sure that they have a lot of clear space around the mesh for the back-washed debris to be dispersed into, and that they are not sitting in a build-up of silt or sludge.

Sample pumps can be suspended in water, hung from a float, or if the water conditions allow, placed in water on a stand.

We also manufacture stands and guide rails to help site your filter pump.

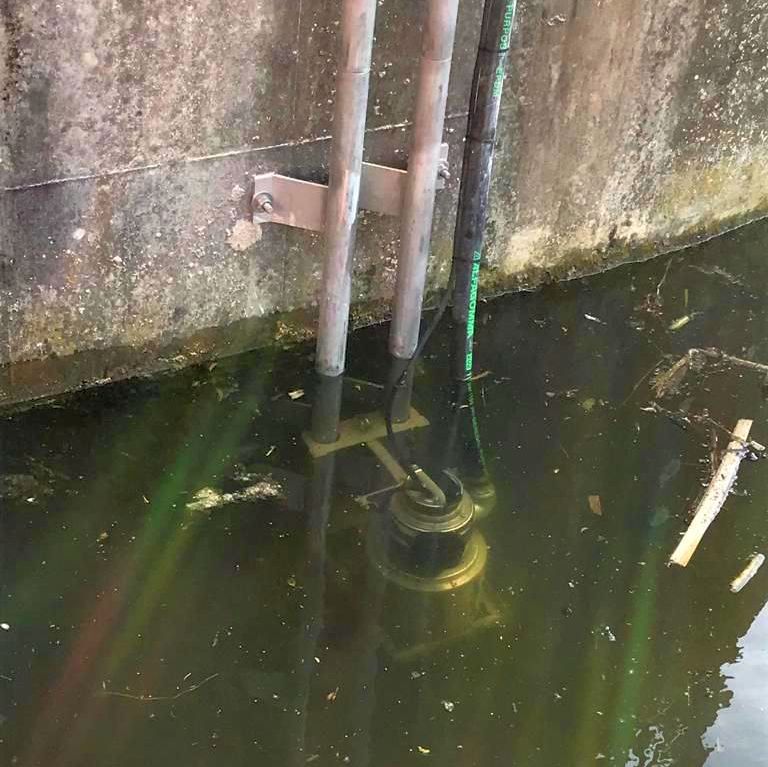

Rotorflush submersible self-cleaning intake sample pump on a guide rail

Rotorflush submersible self-cleaning intake sample pump on a guide rail

Although they are self-cleaning all of our products will require a manual clean every once in a while.

The nylon mesh inserts are easily replaced and stainless mesh can be cleaned with a pressure washer. How often depends on your mesh size and what you are filtering.

As a minimum we recommend the following:

  • Mesh up to 115 micron should be cleaned or replaced every 1000 hours of use
  • Mesh up to 315 micron should be cleaned or replaced every 5000 hours of use

Full maintenance guidelines can be found in the instruction manuals available from the download link above.

All our products are guaranteed for a year. Full details in our Terms and Conditions below.
