Nauti Filterpumps™

Rotorflush Nauti Filterpumps™. High-head submersible filter pumps with built-in self-cleaning filters on the suction intake. They have a maximum output of 220 litres a minute, and can pump up to 10 bar. Pumping and filtration are combined. All stainless steel construction.

Key Features

  • Multi-stage Pump With Self-cleaning Intake
  • Screens Suspended Solids Down to 50 Microns
  • Maximum Flow Rate 220 L/Min
  • Maximum Head 103 Metres

Configure your product

Your price from:
Enquire Now

Nauti Filterpumps™

  • Specifications
  • Prices & ordering
  • Downloads
Enquire

Specifications & Dimensions

Select model
To view accurate specification and dimension details

Specification

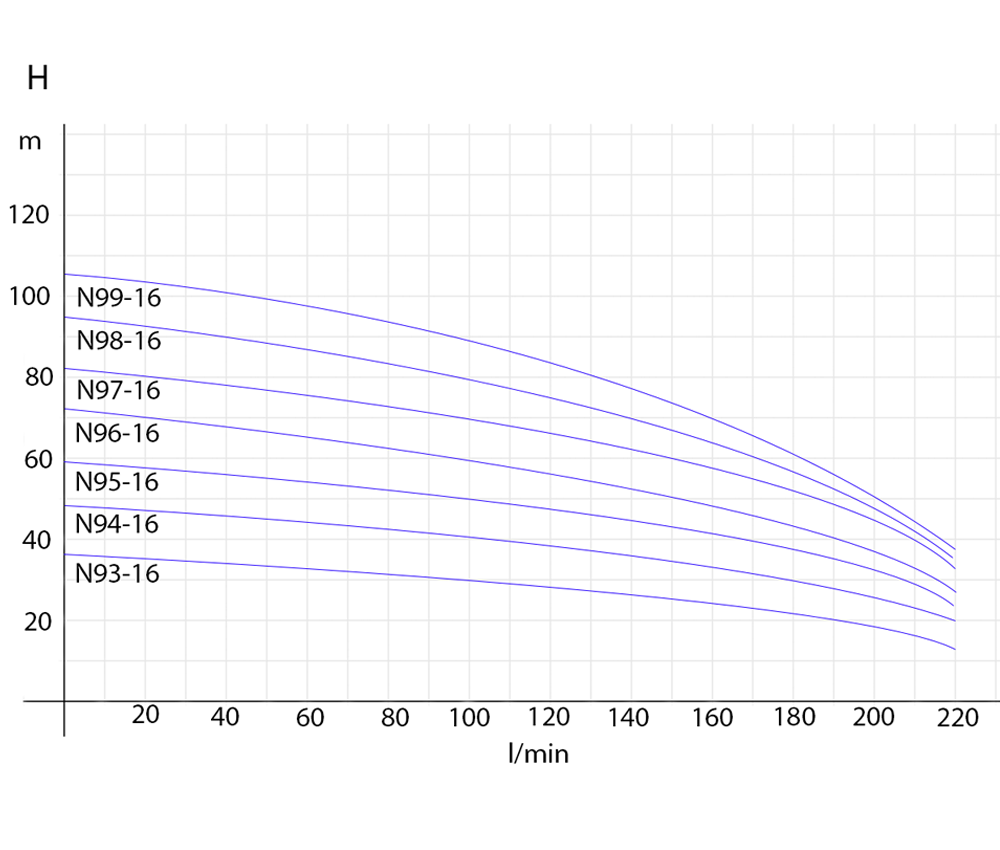

Nauti Curves
Voltage 1ph
230 V
Voltage 3ph
415 V
Power
1.1 kW
Amps 1ph
7.5 A
Amps 3ph
2.8 A
Outlet
1.25 "
Flow Rate Max
220 L/min
Head Max
35 m
Float Switch (Single phase only)
Optional
Mesh Apertures Sintered Stainless
50, 100 or 315 micron
Voltage 1ph
230 V
Voltage 3ph
415 V
Power
1.5 kW
Amps 1ph
10.2 A
Amps 3ph
3.7 A
Outlet
1.25 "
Flow Rate Max
220 L/min
Head Max
45 m
Float Switch (Single phase only)
Optional
Mesh Apertures Sintered Stainless
50, 100 or 315 micron
Voltage 1ph
230 V
Voltage 3ph
415 V
Power
2.2 kW
Amps 1ph
11.8 A
Amps 3ph
5.1 A
Outlet
1.25 "
Flow Rate Max
220 L/min
Head Max
57 m
Float Switch (Single phase only)
Optional
Mesh Apertures Sintered Stainless
50, 100 or 315 micron
Voltage 1ph
230 V
Voltage 3ph
415 V
Power
2.2 kW
Amps 1ph
13 A
Amps 3ph
5.6 A
Outlet
1.25 "
Flow Rate Max
220 L/min
Head Max
67 m
Float Switch (Single phase only)
Optional
Mesh Apertures Sintered Stainless
50, 100 or 315 micron
Voltage
415 v Three Phase
Power
3 kW
Amps
6.2 A
Outlet
1.25 "
Flow Rate Max
220 L/min
Head Max
79 m
Float Switch (Single phase only)
No
Mesh Apertures Sintered Stainless
50, 100 or 315 micron
Voltage
415 v Three Phase
Power
3 kW
Amps
6.5 A
Outlet
1.25 "
Flow Rate Max
220 L/min
Head Max
90 m
Float Switch (Single phase only)
No
Mesh Apertures Sintered Stainless
50, 100 or 315 micron
Voltage
415 v Three Phase
Power
3 kW
Amps
7.1 A
Outlet
1.25 "
Flow Rate Max
220 L/min
Head Max
103 m
Float Switch (Single phase only)
No
Mesh Apertures Sintered Stainless
50, 100 or 315 micron

Dimensions

Nauti filterpump™ dimensions diagram
Height
650 mm
Overall Diameter
220 mm
Weight 1ph
20.7 kg
Weight 3ph
19.7 kg
Height
730 mm
Overall Diameter
220 mm
Weight 1ph
23.7 kg
Weight 3ph
21.2 kg
Height
760 mm
Overall Diameter
220 mm
Weight 1ph
25.7 kg
Weight 3ph
24.2 kg
Height
790 mm
Overall Diameter
220 mm
Weight 1ph
26.2 kg
Weight 3ph
24.7 kg
Height
820 mm
Overall Diameter
220 mm
Weight
26.7 kg
Height
850 mm
Overall Diameter
220 mm
Weight
27.2 kg
Height
880 mm
Overall Diameter
220 mm
Weight
27.7 kg

Prices & ordering

  • All Models
  • N93
  • N94
  • N95
  • N96
  • N97
  • N98
  • N99
Model No. Single Phase Manual Single Phase Automatic Three Phase Manual
N93
N94
N95
N96
N97
N98
N99

General Information About Nauti Filterpumps™

Nauti submersible filter pumps are high pressure centrifugal submersible pumps with a built-in self-cleaning filter in their intake. They can screen dirty water as they pump - the self-cleaning intake protects against blocking.

Nauti Filterpumps™ are  high head, multistage pumps, ideal for industrial applications requiring up to 220 litres a minute.

Here are some typical uses of Nauti Filterpumps™:

  • Wash water for trash screens
  • Dirty water systems on dairy farms
  • Irrigation
  • Screening process water for re-use
Nauti Filterpump™

Nauti Filterpumps™ can be fitted with:

Nylon Mesh inserts

The filter mesh is made up of replaceable bias-cut nylon mesh offering a very clean filtration, ideal for sampling. The inserts are inexpensive and easy to replace.

Available in 60 micron, 115 micron or 300 micron.

316 stainless Sintered Mesh

A robust screen that can be easily cleaned with a pressure washer. Ideal for heat pumps and other application with small tolerances.

Available in 50 micron, 100 micron and 315 micron.

Nauti Filterpumps™ are ideal for screening and pumping raw water for irrigation and industry, final effluent for sewage treatment works wash and for screening industrial process water.  For best performance, make sure that there is good clearance around the filter pump mesh so that back-washed debris can disperse, and that the filter pump is above any silt or sludge that may accumulate.

The smallest Nautis weigh in at 20 kgs, the largest at 28 kgs. Nauti filterpumps™ can be suspended in tanks, sumps or ponds. They can be suspended from floats or buoys, or raised and lowered on a guide-rail system.

Rotorflush Filters Ltd are happy to advise and comment on siting and installation.

Although they are self-cleaning all of our products will require a manual clean every once in a while.

The nylon mesh inserts are easily replaced and stainless mesh can be cleaned with a pressure washer.

How often will depend on your mesh size and what you are filtering.

As a minimum we recommend the following:

  • Mesh up to 115 micron should be cleaned or replaced every 1000 hours of use
  • Mesh up to 315 micron should be cleaned or replaced every 5000 hours of use

Full maintenance guidelines can be found in the instruction manual available from the download link above.

All our products are guaranteed for a year. However, as a condition of our guarantee, and to protect against dry-running, we recommend the use of a starter panel or control panel capable of cos phi load monitoring when running three-phase filter pumps.

Full details in our Terms and Conditions.

What is the difference between a Rotorflush Filterpump™ and a filter pump?

A filter pump is a pump with a filter on the intake; a Rotorflush Filterpump™  is our unique, award-winning submersible pump with a built-in self-cleaning filter on the pump intake that keeps the intake filter clear and protects the pump from blocking and clogging.
