Nastec Control Panel
Nastec Control Panel

Pump Control Panels and Cos-Phi Load Monitors

Pump Control Panels and load monitors for dry running protection for Rotorflush filter pumps. Starter Panels and DIN rail mounted load monitors for use in Pump Control Panels and Cos-Phi load monitoring.

Key Features

  • Stand Alone or Intergrated Options Available
  • Protects Pumps From Dry Running

Configure your product

Your price from:
Enquire Now

Pump Control Panels and Cos-Phi Load Monitors

  • Specifications
  • Prices & ordering
  • Downloads
Enquire

Specifications & Dimensions

Select model
To view accurate specification and dimension details

Specification

Voltage
230 v
Max Current Power
18 A
Over Amp Protection
Yes
Additional Controls
2 Volt Free Contacts
Mounting
Screws
Voltage
415 v
Max Current Power
25 A
Over Amp Protection
Yes
Additional Controls
2 Volt Free Contacts
Mounting
Screws
Voltage
415 v
Over Amp Protection
No
Mounting
Din Rail

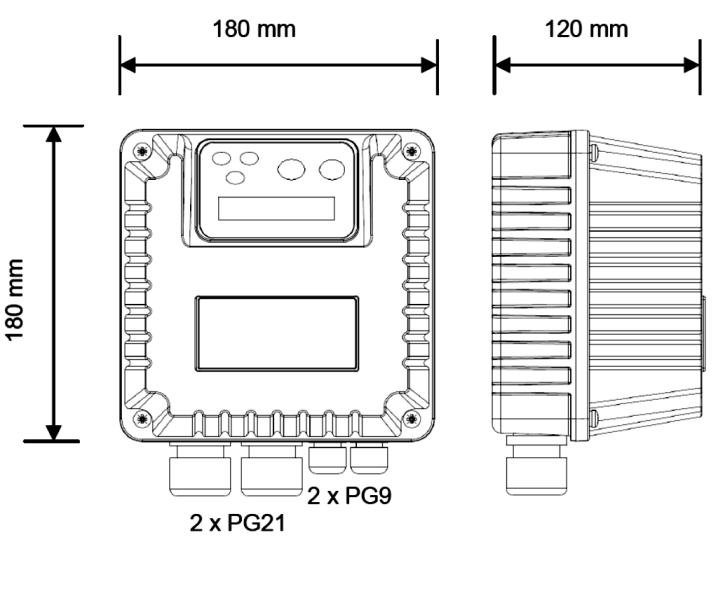

Dimensions

Nastec Dimensions
Height x Width x Depth
180 x 180 x 120 mm
Weight
2 kg
Height x Width x Depth
180 x 180 x 120 mm
Weight
2.4 kg
Height x Width x Depth
75 x 56 x 110 mm
Weight
400 g

Prices & ordering

  • All Models
  • Nastec Pilot Single Phase up to 18A
  • Nastec Pilot Three Phase up to 25 A
  • HPL DIN Rail load Monitor
Model No.
Nastec Pilot Single Phase up to 18A
Nastec Pilot Three Phase up to 25 A
HPL DIN Rail load Monitor

Downloads

Nastec manual version 03.pdf HPL110.pdf
