Irrigation & Agriculture
- All Stainless Steel Self-cleaning Intakes - Engineered to Last
- Dirty Water Systems - Screen and Pump Simultaneously
- Low Maintenance Irrigation - Reduced Downtime
- Eel Regulation Compliant Screening
Learn More
Browse Products
Amber
The Amber Range of 60 Hz Medium to High Head, Multistage Submersible Filterpumps Available in 60 Hz
- Maximum output - 48 US GPM, 150 l / min
- Maximum head - 324 feet, 100 m
Price from: £0

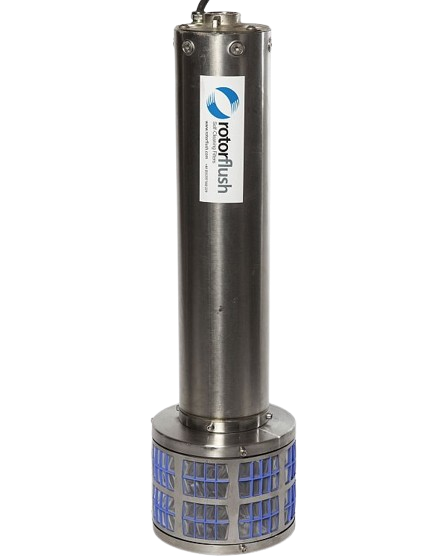

Cobalt 400 Filterpumps
Cobalt filterpumps are industrial low to medium pressure submersible pumps with integral self-cleaning suction intake screens. These robust filterpumps offer high volume pumping and screening - up to 75 m3 / hr, 330 US GPM.
- Maximum Output - 75 m3 / hr, 330 US GPM
- Maximum Head - 19 m, 62 ft
Price from: £8,470
Idrogo
Idrogo filterpumps are medium-head submersible pumps with an integral self-cleaning suction intake. Ideal for domestic and small scale industrial use, delivering up to 120 litres per minute, maximum head 80 metres.
- Maximum Output 120 L/Min
- Maximum Head 80 m
Price from: £2,710
Jade
Jade filterpumps are 60 Hz medium – high head, multistage submersible pumps in chrome-nickel stainless steel with a stainless steel integral self-cleaning suction intake. They have a maximum output of 92 US GPM, maximum head of 160 ft.
- Maximum output - 92 US GPM, 350 l / min
- Maximum head - 160 ft, 48 m
Price from: £0
Jasper
Jasper filterpumps with self-cleaning intake screens are low and medium head submersible pumps with a maximum output of 1000 l/min and a maximum head of 35 metres. Corrosion resistant 316 stainless steel versions are also available.
- Maximum Output – 1000 L/Min
- Maximum Head 35 m
Price from: £8,090
Nauti
Our Nauti high-head submersible filterpumps with built-in self-cleaning intake filters have a maximum output of 220 litres a minute and can pump up to 10 bar. Pumping and filtration are combined, and the pump's self-cleaning intake protects the pump and other equipment from blockage.
- Maximum Output 220 L/Min
- Maximum Head 103 m
Price from: £2,590
RF100
The RF100 series self-cleaning inlet filters are designed to protect dry mounted pumps and other equipment from blocking while water is being pumped. Available with 1, 2, or 3 filter heads, capacity up to 90 litres a minute, 24 US GPM.
- Filter 30 – 90 L/Min, 8 – 24 US GPM
- Screen 60, 115 or 250 Microns
- US Mesh 230, 120 and 60
Price from: £280
RF200 Filter
Our RF200 self-cleaning filters provide effective screening for surface mounted pump intakes. The RF200 series can filter from 50 microns - 6 mm, handling up to 220 litres a minute, 58 US GPM.
- Screen Up to 220 L/Min, 58 US GPM
- Filter From 6 mm Down to 50 Microns
- US Mesh 3 Down to 230
Price from: £1,600
RF300 Filter
The R300 is a suction side self-cleaning stainless steel intake filter that protects pumps and other connected equipment from blocking and blinding. RF300's can can handle up to 560 litres a minute, 148 US GPM.
- Screen Up to 560 L/Min, 148 US GPM
- Filter From 3 mm Down to 50 Microns
- Down to 230 US Mesh
Price from: £2,600
Rotorflush Filters - Invented on a Farm
The award-winning Rotorflush Self-cleaning filter system has its origins in Agriculture. The first strainers and screens were developed specifically to handle dirty water on dairy farms - no one wants to tanker dirty water away.
Rotorflush self-cleaning intakes and filterpumps can also help keep irrigation equipment clear from blockage by weed and other water-borne debris, reducing maintenance and downtime. Good for crops, golf courses, livestock and more.
Using Rotorflush Products for Agriculture
Of the many uses farmers worldwide make of our self-cleaning suction intake filtration products, these are the most common:

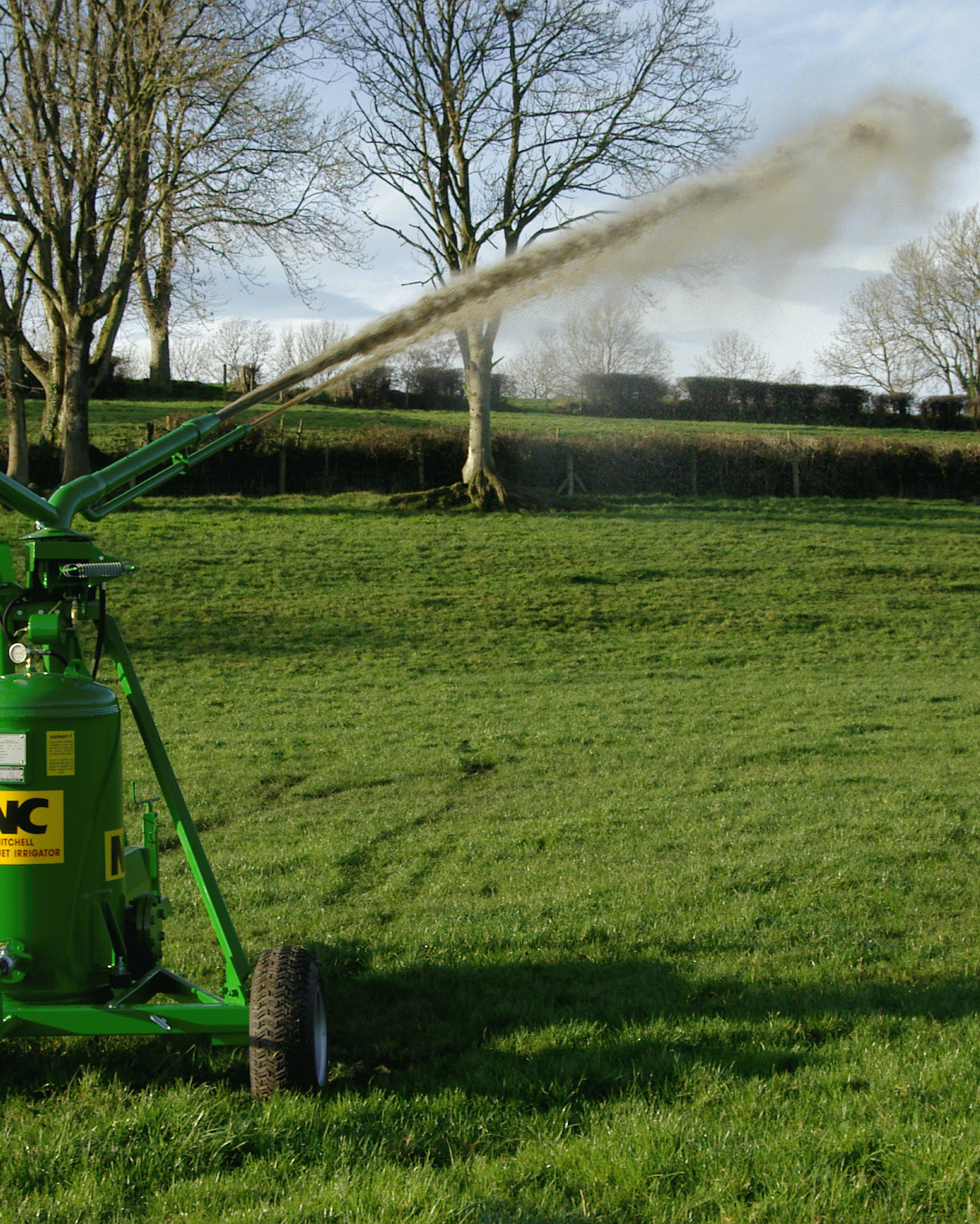

Dirty Water Systems on Farms
Dirty water run-off from yards, milking parlours and livestock units is usually collected in a lagoon, settlement tank or a slurry pit with a weeping wall system. Slurry lagoons and settlement tanks often contain more water than manure. Pump filters, pipelines or irrigation nozzles will often block when pumping back to land using a conventional pump.

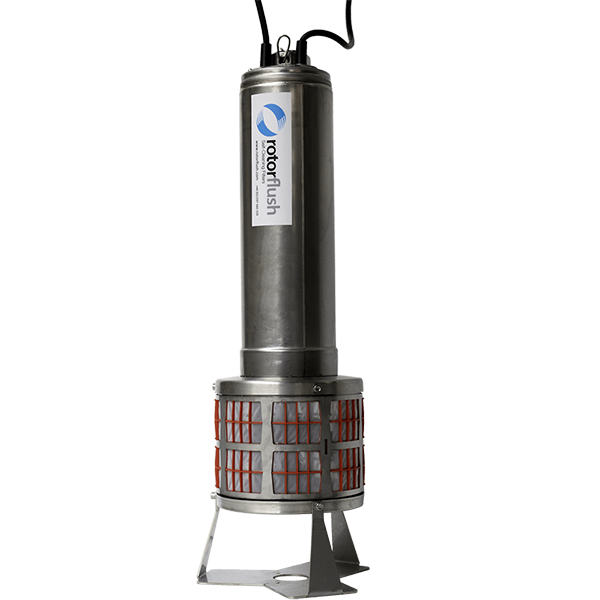

Rotorflush submersible filterpumps have an integral self-cleaning suction strainer that keeps the filter mesh and pump clear whenever the pump is in operation. Time and time again, Rotorflush filterpumps have proved more effective than expensive to maintain peristaltic pumps.
Filtering out suspended solids at source concentrates solids in lagoons and tanks, and protects pumps and other equipment further down the line. This means less visits from the slurry tanker, more savings for you.

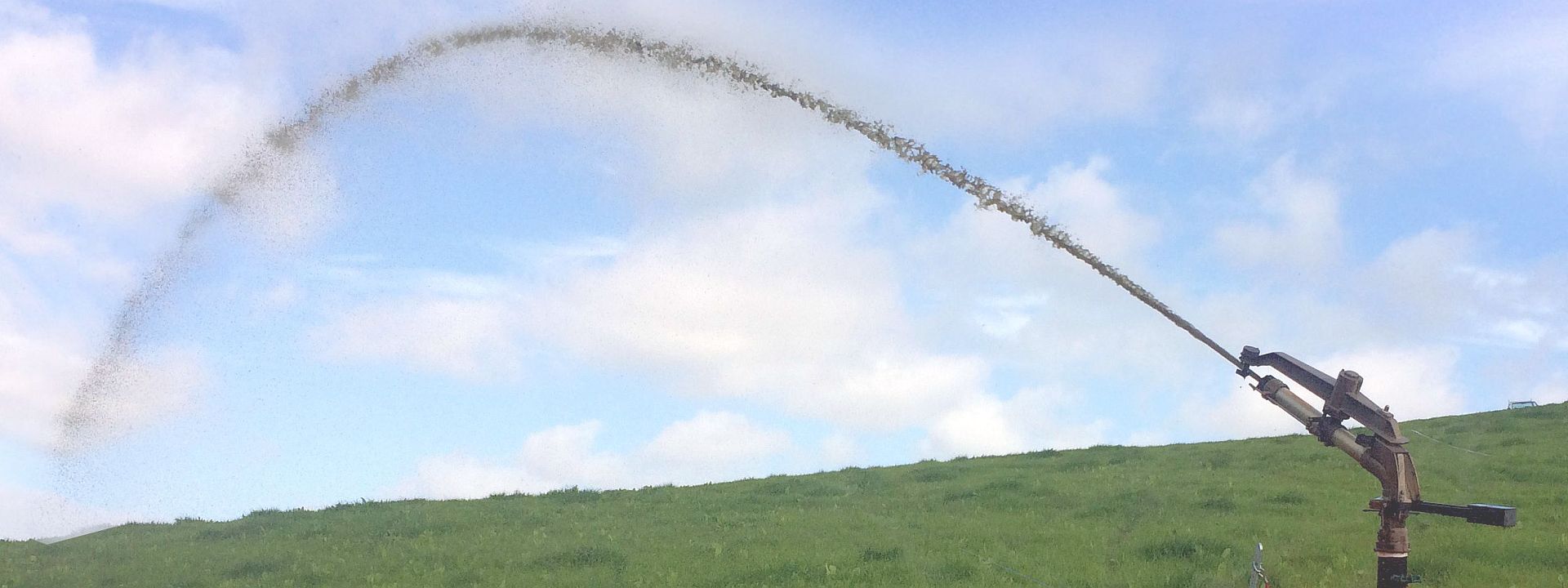

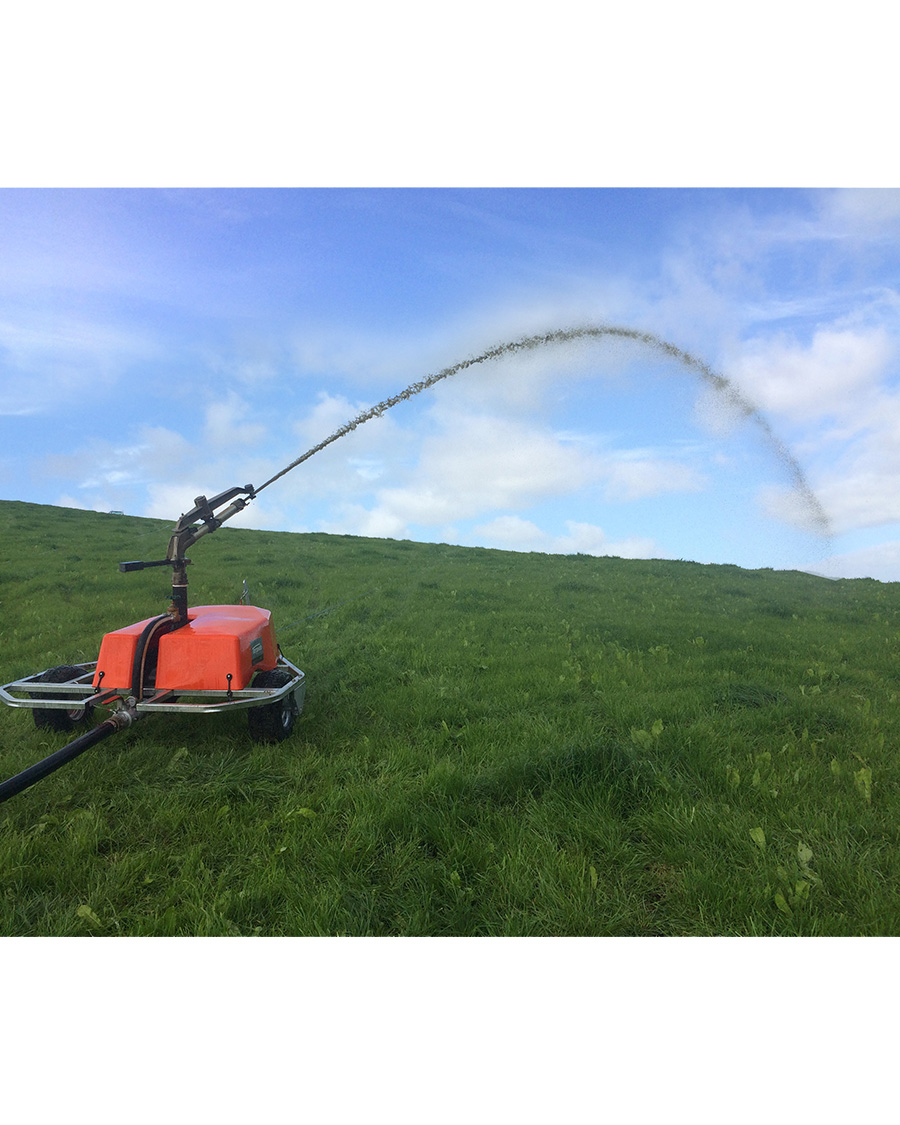

Irrigation
All Rotorflush products are designed for use on pump suction; our filterpumps have a self-cleaning screen on the pump intake and our self-cleaning basket strainers and filters connect to the suction pipe of surface mounted pumps.

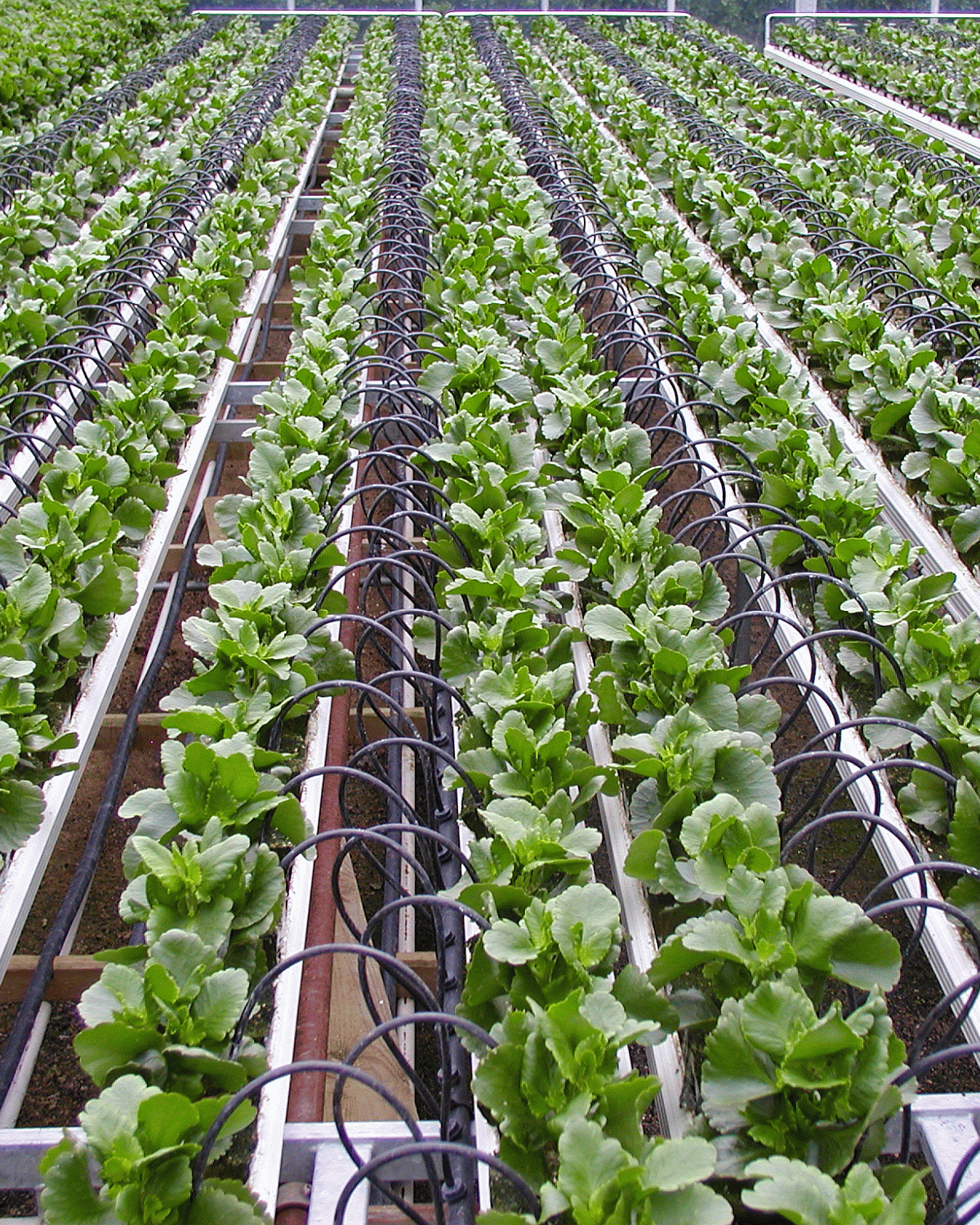

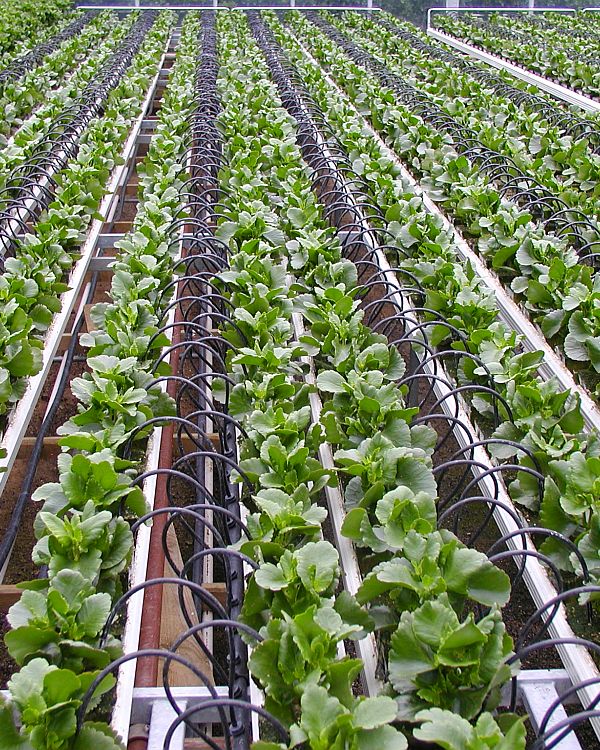

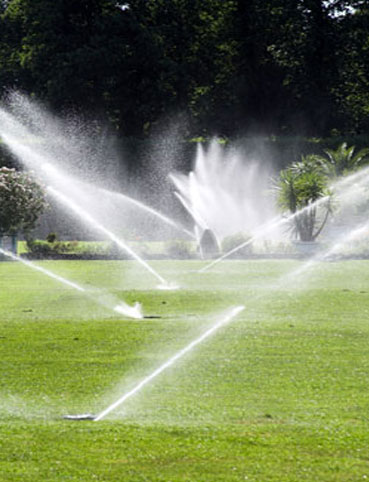

Drawing water for irrigating crops, lawns, golf courses, or for flooding or draining wetlands can be problematic. Even the cleanest raw water can contain weed and debris that may block pumps and the drip feeds and nozzles of irrigation equipment. Clearing blockages is time-consuming and costly.
Our filterpumps allow water to be pumped and screened at source. The self-cleaning inlet filter requires little maintenance and protects the pump, pipelines and irrigator nozzles from clogging.
For surface mounted agricultural dirty water pumps, our RF200R and RF400R filters can be fitted to suction intakes. They are specifically designed for surface mounted centrifugal and progressive cavity pumps. Again, the self-cleaning mechanism keeps the filter mesh clear whenever the pump is in operation. Find out more about these self-cleaning strainers and filters.
Livestock Watering
Raising livestock requires a lot of water. Livestock watering is becoming more and more complex as herds get bigger and new farming methods are adopted. Animals need access to fresh drinking water – and a surprisingly lot of it – see the table below.
Good livestock watering management requires investment, organisation and forward planning. The Northern Ireland Department of Agriculture, Environment and Rural Affairs (DAERA-NI) offers the following advice:
“Farmers should develop contingency plans to get water to all stock in the event that water will be turned off. In many cases this will mean having sufficient stores and a means of getting it to the animals – a storage facility and a pumping system.”
Sourcing water for livestock watering can mean abstracting raw water from streams, ponds or other natural water sources. Mains water is expensive, so making the best use of rainwater and recycling water where possible reduces costs.
Pumps, water trough ball valves and other equipment can easily become blocked or jammed by weed, debris and other water born solids. Water often needs to be cleaned before re-use. Rotorflush self-cleaning strainers and submersible filter-pumps provide robust low maintenance filtration and pumping while protecting and extending the life of your equipment. We have supplied many farmers in the UK and abroad with pumps and strainers that have enable them to conserve water and reduced the time and effort that can be spent unblocking filters and repairing equipment.
The Rotorflush Self-cleaning Filter was invented by a dairy farmer. Our filters and filter pumps can help farmers put in place the systems they require for effective, safe and reliable livestock watering.
Frequently Asked Questions
Rotorflush self-cleaning filtration products are used for separating solids from dirty and contaminated water so that pumps, spray bars, irrigation and other equipment does not block or clog. Typical uses are:
- Screening and pumping water from lakes, ponds and rivers
- Screening and pumping dairy run-off from lagoons or settlement tanks
- Filtering water ahead of irrigation equipment
- Complying with Eel regulations when abstracting raw water
All of our self-cleaning intake screens are specified to suit required flow rates, for instance filterpumps are recommended based on the flow rate and pressure your system needs and intake strainers and screens are specified according to the maximum flow through that is required.
Consideration should be given to what mesh size you need - top tip, go for the largest mesh size you can get away with to minimise maintenance. This will be determined by the smallest aperture the water you are drawing needs to go through, for example a 3 mm irrigation nozzle or spray bar aperture.
If you need advice or more information please get in touch.
Increasingly, the Environment Agency makes taking steps to protect eels a condition of abstraction licences in England and Wales. These environmental regulations may have a bearing on the type of filterpump or strainer you need.
Our Products can be sized to account for Eel Regulations or EPA rule 316(b) if applicable, so that intake velocity and mesh size meet regulatory requirements for the flow rate you require.
Use of our products in sludge from bio-digesters, raw sewage or livestock slurry is not recommended.
Our strainers and filterpumps are ideal where the medium is dirty water contaminated with organic and fibrous particulate but only so long as the liquid is equal to or very near the viscosity of water.
Animal slurry and bio-digestate are too thick and concentrated for our self-cleaning screens to work effectively.
Not every submersible pump is suitable to be turned into a filterpump.
When we manufacture a filterpump we re-engineer the pump to have an additional impeller to provide the wash water to the screen without sacrificing the output of the pump.
Re-engineering a pump can often invalidate its warranty. Therefore, we would highly recommend that you opt for one of our Filterpumps that come with their own 1-year warranty.
If however you have a particular pump that you would like to be made into a filterpump please contact us to discuss.
Yes – because our products pump and filter directly from a dirty water source, there is less need for expensive in-line filtration. All our products have built-in self-cleaning back-washes that prevent intake screens from blocking, keep pumps clear and protect other connected equipment. This reduces maintenance, minimises downtime and can extend the life of pumps.
Vegetable Washing at Laleham Farm
Charlie said that the filters are “one of the most significant investments we’ve made” giving the “biggest continuing result” of any equipment.
Rotorflush Sales Team
Rotorflush Filters ltdVegetable washing water accumulates in a small lagoon that feeds into settlement tanks before being pumped out again for the next round of washing, this often causes blockages with his existing equipment.
Using a Rotorflush self-cleaning strainer the majority of the water used is recycled, water costs are considerably lower.
Read the Full Case StudyWhy Rotorflush?
